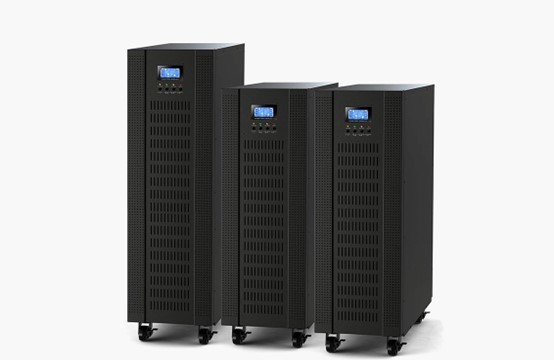

10-30KVA SHUYI CN-UT Floor Mounted UPS
10-30KVA SHUYI CN-UT Floor Mounted UPS
10-30KVA SHUYI CN-UT Floor Mounted UPS

10-30KVA SHUYI CN-UT Floor Mounted UPS

SHUYI CN-UT series three-input three-output UPS is a sine wave on-line high-performance uninterruptible power supply. High-performance sine wave online UPS designed with small intelligent equipment (such as measuring devices, industrial automation equipment, etc.), precision instruments, etc. In particular, adapting the generator as an AC source input can effectively isolate the bad power generated by the generator, avoid grid pollution, and provide a pure, safe and stable power supply for the load.

Capacity

Connection Mode

10KVA -30KVA

Three phase+Four wire





Input Voltage

Output Voltage

380/400/415VAC

200/208/220/230/240VAC





Frequency

Battery Cells

40-70Hz

16-20 optional

Inquire Now
Product categories
how can we help you
You can contact us any way that is convenient for you. We are available 24/7 via email or telephone.
Contact Us
New Products
Feature

  • Safe and green

    ● All devices comply with international environmental protection RoHS standards, green and harmless, quality assurance

    ● Reliable electromagnetic compatibility characteristics, certified by authoritative organizations, suitable for professional applications in high-frequency communication, radio, television, audio and video systems



    ● Support ECO operation mode, efficiency up to 99%, to achieve high power utilization

  • Full digital control

    ● Advanced DSP control technology, accurate and fast data processing, fast fault self-diagnosis and processing ability, perfect self-protection function, higher reliability

    ● Improve circuit integration, optimize circuit design, improve anti-interference ability, and make performance more stable



    Independent air duct design technology to ensure safe and reliable operation of the whole machine







  • Innovative battery with high-efficiency battery life

    ● Industry-leading backup time for short-delay configuration, providing longer-term power protection for electrical equipment. The number of battery cells can also be arbitrarily configured according to user needs to extend the backup time and ensure the uninterrupted power consumption of the equipment.

    ● The long-delay configuration supports charging current expansion, the maximum can be increased to 20A, which doubles the charging time and meets the needs of different customers

    ● It can support the self-start function of incoming calls, once the mains power is restored, it can automatically connect to the electrical equipment



    ● The number of battery cells supports ±12~±20 adjustable, flexible battery configuration

  •
Advantage
  •

  • >>Using advanced IGBT rectification technology, the input power factor is as high as 0.99, and the input current harmonic distortion is less than 3%;

    >>The output power factor is as high as 0.9, and the load capacity is strong;

    >>Adopt Eaton's patented third-generation hot synchronous parallel technology, which allows 4 UPSs to be connected in parallel, improving system scalability;

    >>Equipped with a friendly user interface, the operation is intuitive and convenient;

    >>Equipped with X-slot communication expansion slot and RS-232 communication interface, with various expansion cards, to realize intelligent monitoring function;



    >>Three-in-single-out and single-in-single-out models can be customized according to requirements.

  •
Specifications

Model CN-UT

3110L

3115L

3120L

3130L

Capacity

10KVA

15KVA

20KVA

30KVA

Input

Connection Mode

Three phase+Four wire

Input Voltage

380/400/415VAC

Voltage Range

285~520VAC @ 100% Load；176~520VAC @ 50% Load

Frequency

40-70Hz

Power Factor

≥0.99

Output

Output Voltage

200/208/220/230/240VAC

Voltage Regulation

±1%

Frequency

S y n c h r o n o u s

correction range

46-56Hz/ 56-64Hz

Battery Model

50Hz±0.1Hz,60Hz±0.1Hz

Distortion(THDU)

≤2% ( Linear load ) ( Non-liner load )

Peak Coefficient

≥3:1

Overload Capacity

110% convey to bypass after 1h;125%,convey to bypass after 10min;150%,convey to bypass after 1min.

Battery

Battery cells

16(16-20 optional)

20(18-20 optional)

Charging Current

1A/2A/4A/6A/12A settable



Battery Model

Depends on the applicant

Physical Parameters

W*D*Hmm

190*442*318

190*575*318

250*815*826

Net Weight(kg)

16

22

62



Applications

●Small and medium enterprises

●Small or medium data center

●Banking and Finance

●Small and medium commercial and enterprise

●Telecommunications

●Process control management

 Tower UPS For Data Center
