Cabinet Data Center Applied In Small Business
Cabinet Data Center Applied In Small Business
Cabinet Data Center Applied In Small Business
Cabinet Data Center Applied In Small Business

Cabinet Data Center Applied In Small Business

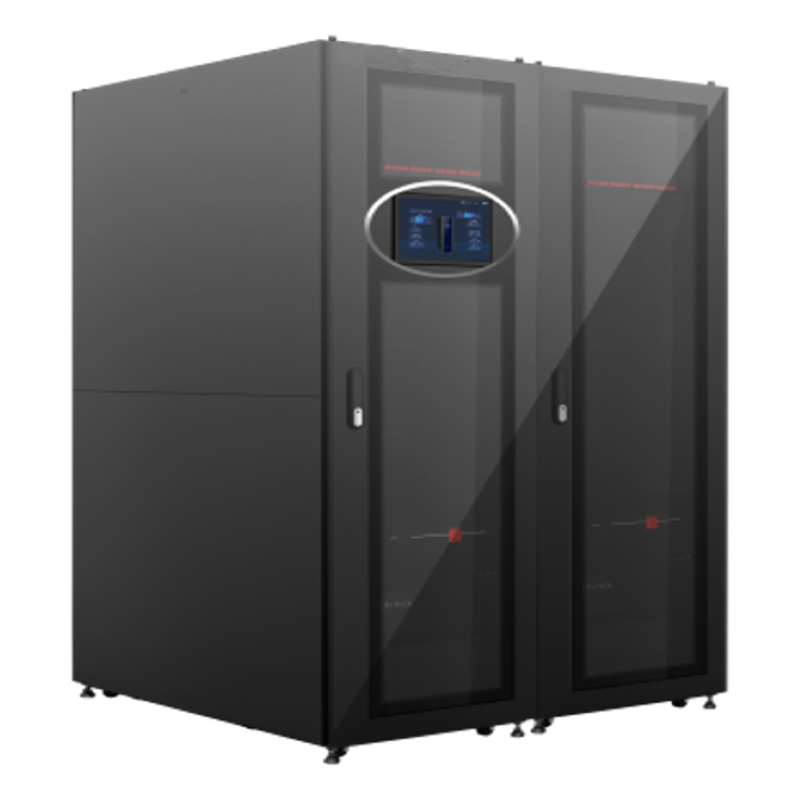

SHUYI I-Rack series intelligent cabinet data center includes the following systems: UPS, power distribution unit, cooling system, cabinet system, wiring system, monitoring and fire systems. It is a kind of integrated solution for IT devices which also provides a safe, reliable and high efficient operation environment for electrical devices.



Refrigerant

R410a / R407c

UPS Capacity

3-10KVA

Size

42U for Standard Units

Warranty

One year

Input Power Supply

220V AC 50HZ-60HZ, 120V AC, 380V AC optional

Cooling Type

DC inverter rack mounted precision air conditioner
Inquire Now
Product categories
how can we help you
You can contact us any way that is convenient for you. We are available 24/7 via email or telephone.
Contact Us
New Products
Features
  • Micro Data Center

    Rack System

    1. IP5X fully enclosed cabinet, isolation of hot and cold aisles.

    2. Available internal space up to 30U

    3. 10.1 inch 0U monitor all-in-one machine

    4. Full load noise≤49dB

    Cooling System

    1.3.5-10.5KW cooling capacity, accuracy ±0.5℃

    2. Inverter compressor + double EC fan, PUE≤1.4

    3. Low load anti-condensation technology

    4. N+X redundant group control

  • Cabinet Data Center

    UPS  System

    1.3-30KVA capacity optional

    2.Backup power time  customized  (15-120m)

    3.ATS dual input switch (optional)

    4.Industrial-grade devices, built-in C-level lightning protection

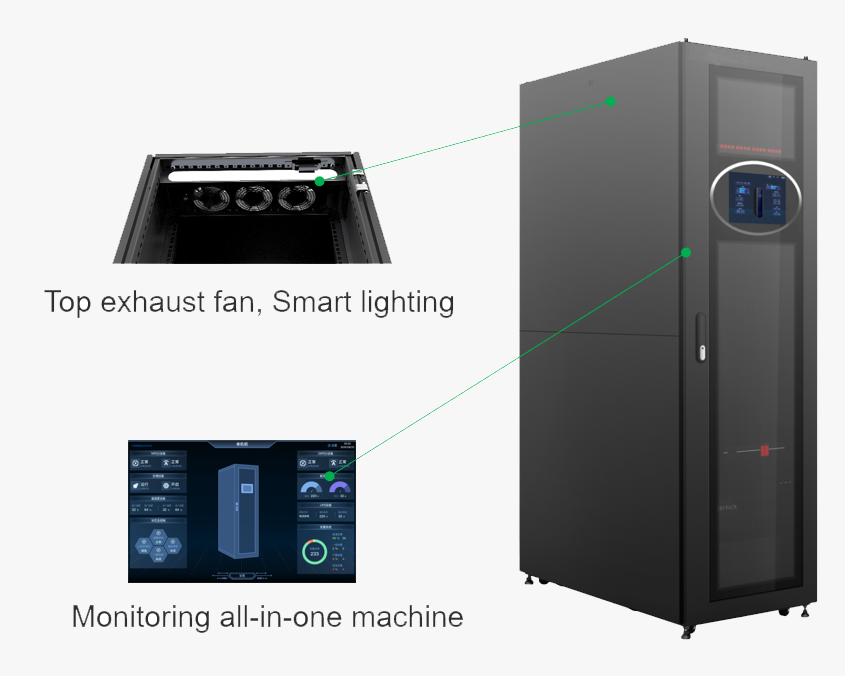

    Intelligent Monitoring System

    1.Highly integrated and intelligent

    2.Satisfy unattended operation by comprehensive monitoring and alarm data

    3.Customized operation and maintenance management platform

    4.Knowing the status of the IT rooms anytime, anywhere, safe and secure.

Advantages
  • Micro Data Center Factory

    >>The easy-to-configure rack can be customized to meet the needs of any indoor environment.

    >>The components are stocked in the area to ensure fast delivery and easy start-up.

    >>A fully integrated solution can save hardware costs in addition to not requiring indoor cooling and maximizing network uptime.

    >>Micro data centers provide enhanced physical security through powerful environmental controls.

    >>Adopt DC inverter compressor and stepless speed regulating EC fan, which can run efficiently under load

Specifictions



Model EC08 EC12 EC20
Cabinet system
Cabinet type Fully enclosed cabinet, glass front door, metal back door
Number of cabinets 1 1 2
Dimensions 600*1200*2000mm(or 600*1100*2000mm)
26U
42U
Available space of IT equipment 8U 16U 30U
Cabinet safety lock Mechanical lock (integrated smart lock optional)
Cabinet lighting Front and rear LED lighting, automatic control
Power supply and distribution system
Input power supply 220V AC 50HZ-60HZ, 120V AC, 380V AC optional
Distribution management unit Rack mounted
Power distribution monitoring Electric energy detection (optional for each branch circuit monitoring and remote monitoring)
Numbers of power supply 2 channels, manual switching (optional ATS automatic switching)
UPS type Online ,Rack mounted type
UPS capacity 3KVA 6KVA 10KVA
Back up time 15 minutes standard time, optional longer backup time
Cooling system

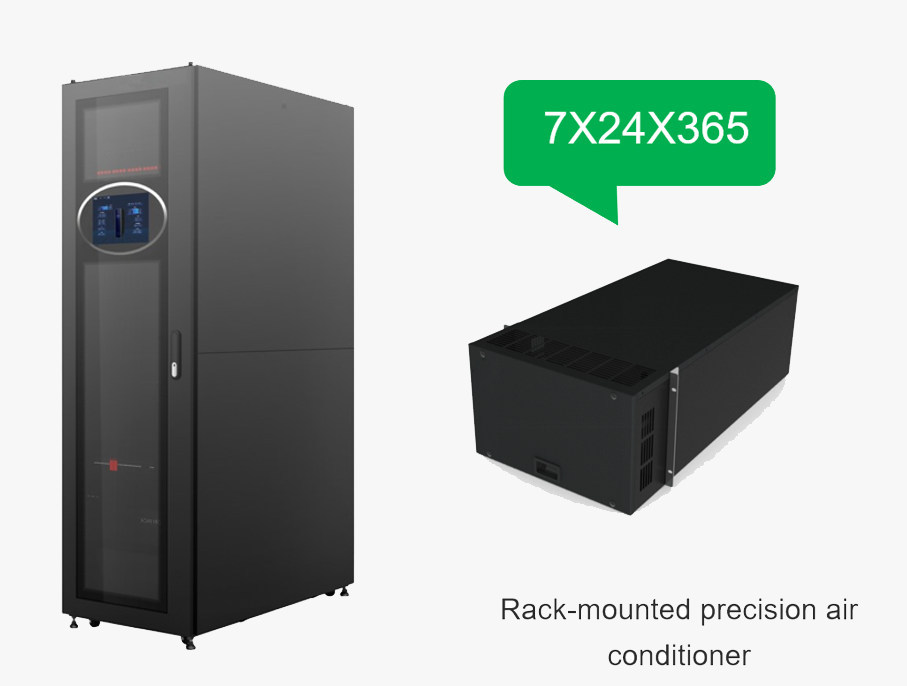

Air conditioner type DC inverter rack mounted precision air conditioner
Numbers of air conditioner 1 1 2
Working temperature range of outdoor unit -20 degrees to +45 degrees,(Optional low temperature assembly to -45)
Emergency cooling system Standard configuration



Applications

Business outlets(Telecom, Finance,Energy,Television,Retail...)

Small and medium companies

Branches and networks of large enterprises, governments, education and medical care

Edge Data Center and Edge Computing

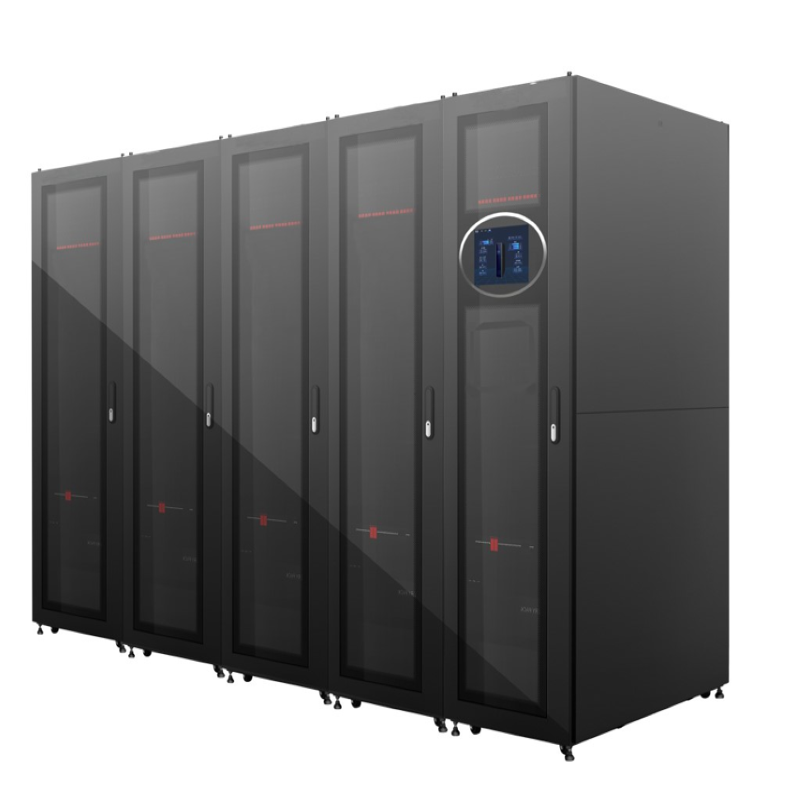

 Multiple Cabinets Data Center
Data Centers With Cooling Edge Computing Data Center

Solutions


Hot Tags : Cabinet Data Center Integrated Micro Data Center Edge Computing Data Center Integrated Cabinet Data Center
