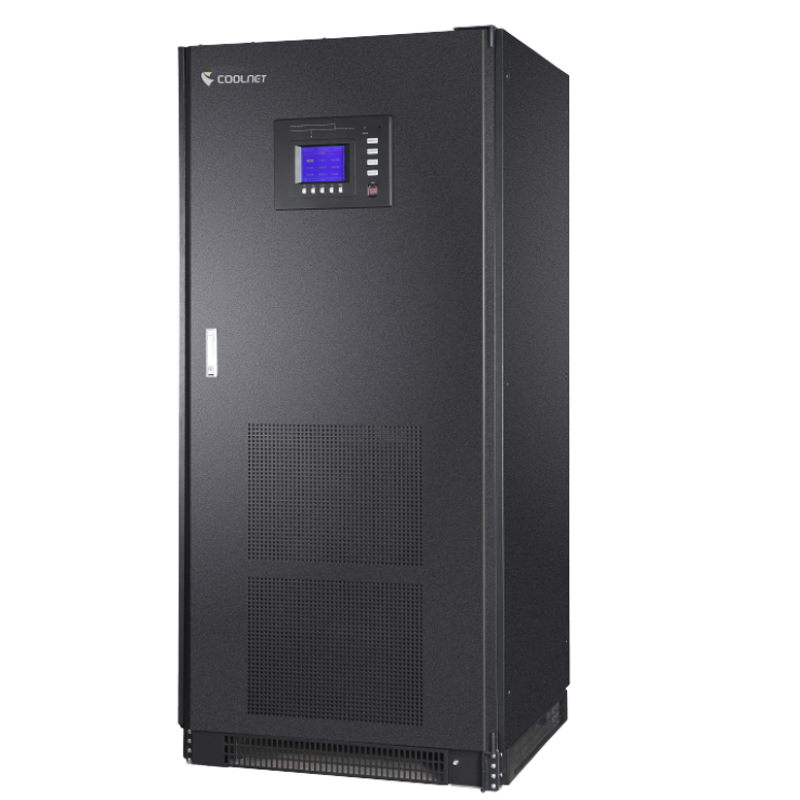

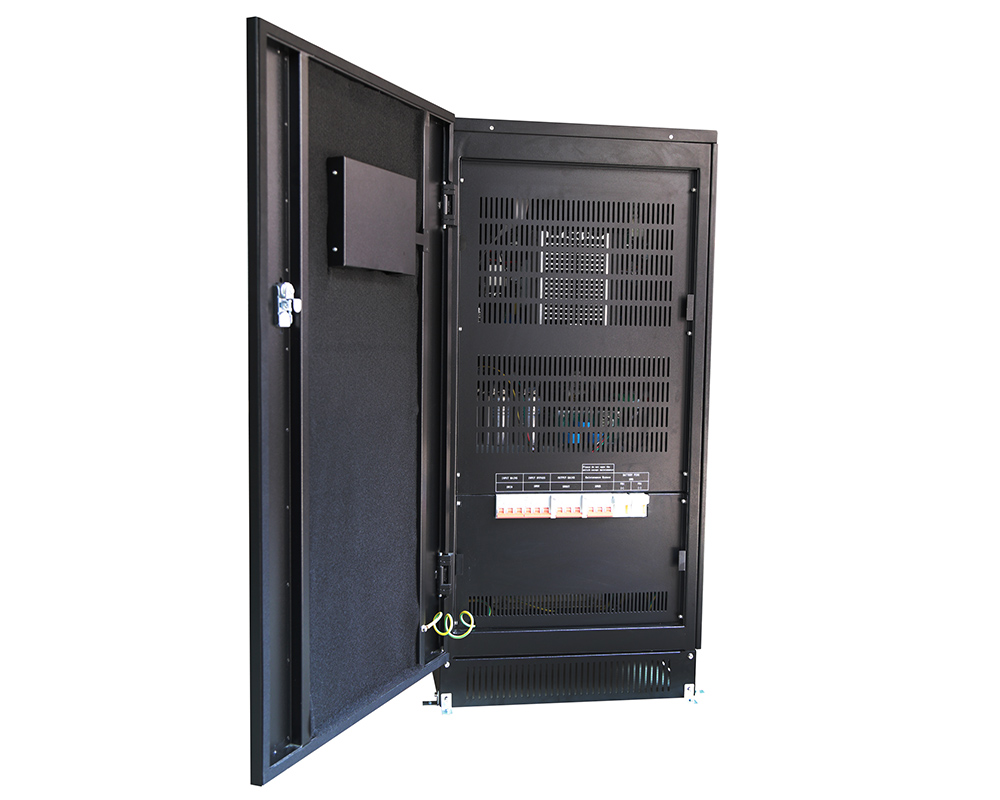

CN-GP Series Low Frequency Online UPS(10-160 Kva)
CN-GP Series Low Frequency Online UPS(10-160 Kva)

CN-GP Series Low Frequency Online UPS(10-160 Kva)

SHUYI CN-GP Series Low Frequency Online UPS is a high-end three phase input and three phase output double conversion uninterruptible power supply products. Adopt innovative design, integration concept, has a number of patents, greatly improvement in the green environmental protection, energy-efficient and reliability. Product performance has reached the international leading level, adopts multiple DSP, MCU, CPLD digital control, which can realize 8 units parallel running independently without the master-slave, has a very high-cost performance, which is the best choice of the power supply high demanding industry.

Capacity

27-144KW

Input Voltage Range

285VAC-498VAC

Output Power Factor

0.9

Input Power Factor

0.95

Battery Configuration

12V, 32 pieces

Frequency

50-60HZ
Inquire Now
Product categories
how can we help you
You can contact us any way that is convenient for you. We are available 24/7 via email or telephone.
Contact Us
New Products
Feature
  • Low Frequency Online UPS

    Safety and Stability

    • Full range of UPS power supply standard BCB components;

    • Inner fan system redundancy design, greatly improve the system reliability;

    • Built in output isolation transformer, can reduce the inverter influence from the voltage between “N” and ”PE” and the load harmonic current;

    • Adopts DSP to realize fully digital control of all power conversion link, the UPS system are more stable;

    • More than 90% system components adopt international famous brand, after 24 hours continuous working and relative test, to guarantee high reliability of the system.

  • CN-GP Series Low Frequency Online UPS

    High performance

    • Super load adaptability and output overload and short circuit ability;

    • Wide range of input voltage and frequency, high power grid adaptability;

    • Super long normal working time without any fault, short repair service time;

    • Output power factor as high as 0.9, Load capacity 12.5% higher than traditional UPS;

    • Intelligent fault diagnosis, fault record, the large capacity of fault storage space;

    • When connected to the harmonic filter, the input power factor can be as high as 0.95, input harmonic current is less than 4.5%;

Advantage
  • CN-GP Series Online UPS(10-160 Kva)

    • Environment friendly green UPS, with various harmonic restrain technology;

    • 6-inch LCD display, friendly interface, easy to operate;

    • Wide input voltage/frequency range, adapt to harsh utility power;

    • Redundant control power, increase even higher system reliability;

    • Non-master/ slaver digital intelligent parallel control, self-load share aIgorithm, parallel up to 8 units

    • Multi DSP, CPLD, MCU digital control, higher consistency and reliability;

    • Advanced intelligent battery management, self-diagnose technology, extend battery life;

    • Output power factor 0.9, delivers 12.5% more power than traditional 0.8 UPS;

Specification



Capacity Rated Power 30KVA 40KVA 60KVA 80KVA 100KVA 120KVA 160KVA
Active Power 27KW 36KW 54KW 72KW 90KW 108KW 144KW
Wiring  Three phase +Ground
Input Voltage 380/400/415VAC
Frequency 50/60HZ
Power Factor 0.95
Output Voltage Regulation ±1%(Balance load), ±2%(Unbalance load)
Dynamic Response ±5%(0-100% load transient)
Distortion <1%(100% linear load)
<3%(100% non-linear load)
Dimension Depth(mm) 720 855
Height(mm) 1200 1900
Width(mm) 6 pulse 550 650 890 1245
12 pulse 650 1000 1415 1770
Weight Net-weight 6 pulse 300 600 960 1075
12 pulse 400 800 1390 1685



Application

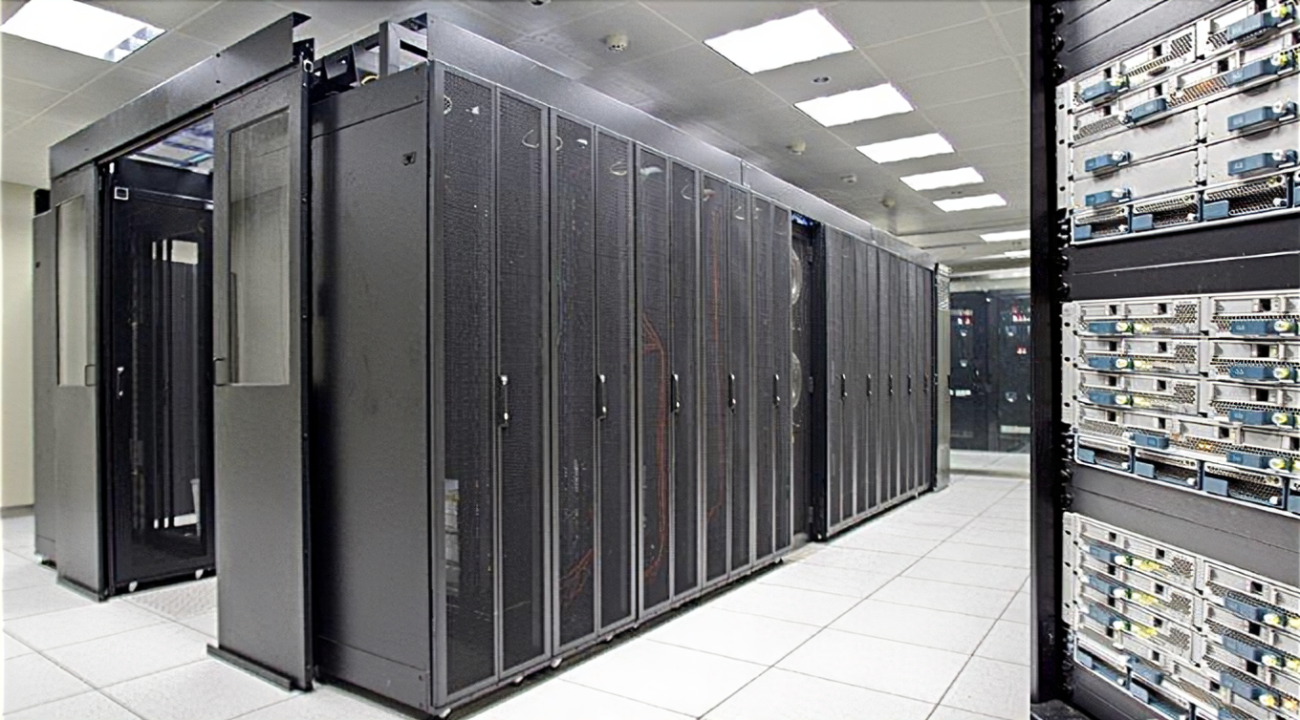

Data Centers, Server rooms

Finance, Telecommunications

Insurance, Education, Government

Large stadium, Opera, Theater

Harbor, Traffic facilities, Production areas etc.

 UPS For Data Center



Solution
