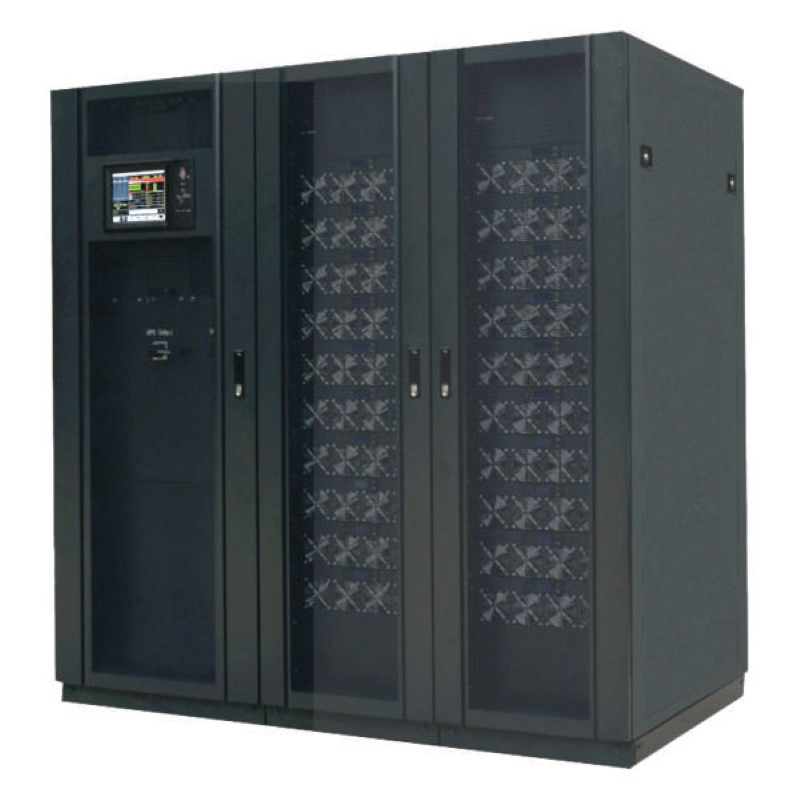

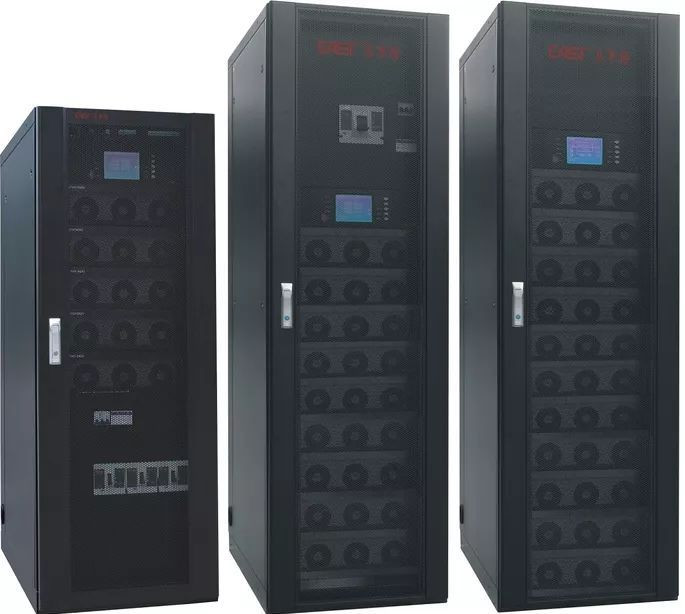

CNM Modular Uninterrupted Power Supply (UPS)
CNM Modular Uninterrupted Power Supply (UPS)
CNM Modular Uninterrupted Power Supply (UPS)
CNM Modular Uninterrupted Power Supply (UPS)

CNM Modular Uninterrupted Power Supply (UPS)

SHUYI CNM Modular UPS is a green environmental protection, high efficiency and energy saving, high reliability of UPS which specially developed by SHUYI, the system adopt the most advanced technology in the field of power electronics and automatic control, realize the modular design, support online hot-swap function, make the investment planning implementation on demand, dynamic growth, not only reduce the initial acquisition cost, but also meet the late on-demand expansion of equipment, widely used in government, education, finance, securities, taxation, telecommunications, transportation, medical, server room, data center, etc.





System Capacity

Connection

100KVA-500KVA

Three-phase five-wire system





Rated Voltage

Rated Frequency

380/400/415VAC

50/60HZ


Input power factor

 Battery Cells

>0.99

40 batteries(32-44 optional)
Inquire Now
Product categories
how can we help you
You can contact us any way that is convenient for you. We are available 24/7 via email or telephone.
Contact Us
New Products



Features
  • CN-UM Modular UPS

    Modular System

    The whole system is a modular structure, composed of 1 to 10 modules, the maximum single power module is 40KW.

    Dual DSP controller of power module, power module independent control, no single point of failure risk.



    Capacity Flexible Configuration

    The parallel circulation of the whole system is small, which can realize 4 parallel online expansion.

    The UPS power module supports hot swapping, which makes capacity expansion and upgrade extremely simple.

  • SHUYI Modular UPS

    Efficient & Saving

    Green energy saving and environmental protection design, output power factor = 1, input harmonic current < 3%, the overall efficiency rate>96%.

    Intelligent battery management, automatic battery maintenance, prolong service life.



    Safety and Stability

    The core control adopts advanced DSP and all-digital technology, and the system stability is higher.

    Super output overload and short-circuit capability to ensure system stability and system safety under extreme conditions.

Advantages



  • SHUYI Modular UPS

    • All the positive maintenance, modular UPS support way up and down into the line, convenient user terminal.

    • System cabinet internal integrated distribution system, installation is convenient and save the user’s investment.

    • Support parallel sharing function of battery pack.

    • Super grid adaptability and load adaptability and strong load capacity.

    • UPS system modular design, N + X redundancy, high redundant reliability, long MTBF.





Specifications



Model CNM 020/10 030/15 040/20 040/10 045/15 060/15 080/20 090/15 120/20
Rate Power 20KVA/20KW 30KVA/30KW 40KVA/40KW 40KVA/40KW 45KVA/45KW 60KVA/60KW 80KVA/80KW 90KVA/90KW 120KVA/120KW
Main input
Input 3P5W(3P+N+PE)
Rate Voltage 380/400/415VAC(L-L);220/230/240VAC(L-N)
Rate Freq 50/60Hz
Input PF >0.99
Current Distortion THDi<3%(100%Linear load)
Voltage Range 304-478VAC(L-L)full load;304-228VAC(L-L)power derate from 100%to 75%
Freg.Range 40-70Hz
Battery
Rate voltage ±240VDC(adjustable for 32-44 sections)
Charging Capacity 20%*Pout
Charging Accuracy ±1%
Bypass
Rate Voltage 380/400/415VAC(L-L);220/230/240VAC(L-N)
Voltage Range Range:-40%-+25%,Settable,default-20%~+15%
Overload 110%,long time operation;110%<load<125%,5 mins
125%<load<150%,1min;>150%,1second
Inverter
Rate Voltage 380/400/415VAC(L-L);220/230/240VAC(L-N)
Rate Freq 50/60Hz
Output PF 1
Voltage Accuracy ±1.0%
load Response <5%(20%-80%-20%step load)
Recovery Time <20ms(0%-100%-0%step load)
Output THDu <1%(linear load),<5%(non-linear load according to IEC 62040-3)
Overload 110%,1 hour;125%,10 mins;150%,1min;>150%,200ms
Frequency Accuracy 0.1%
Synchronize Window Settable,±0.5Hz-±5Hz,default±3Hz
Slew Rate Settable,0.5Hz/S-3Hz/S,default 0.5Hz/S
Phase Accuracy 120°±0.5°
System
Ffficiency Normal Mode≥96%;Battery Mode≥96%
Display LED+7inch touch LCD
Certification-Safety IEC62040-1,IEC60950-1
Certification-EMS IEC62040-2;IEC61000-4-2(ESD);IEC61000-4-3(RS);IEC61000-4-4(EFT);IEC61000-4-5(Surge)
IP Degree IP20
Configuration USB,RS232,RS485,Dry contact,Cold start
Option SNMP card,AS400 card,Parallel kit,LBS,Air filter,Bottom entry kit,Wheels kit
Environment 0-40℃(operation);-25~70(storage);0-95%(Humidity,non-condensing)
Noise(dB)(1meter) 65dB   @100%load,62dB   @45%load
Dimention
Cabinet(W*D*H)mm 482*700*396(9U,
wheels not included)		 482*700*662(15U,
wheels not included)		 482*700*840(19U,
wheels not included)
Module(W*D*H)mm 440*555*85(2U)





Applications

• Data centers, computer rooms

• ISP server, telecommunications

• Finance, securities, transportation

• Taxation, medical systems

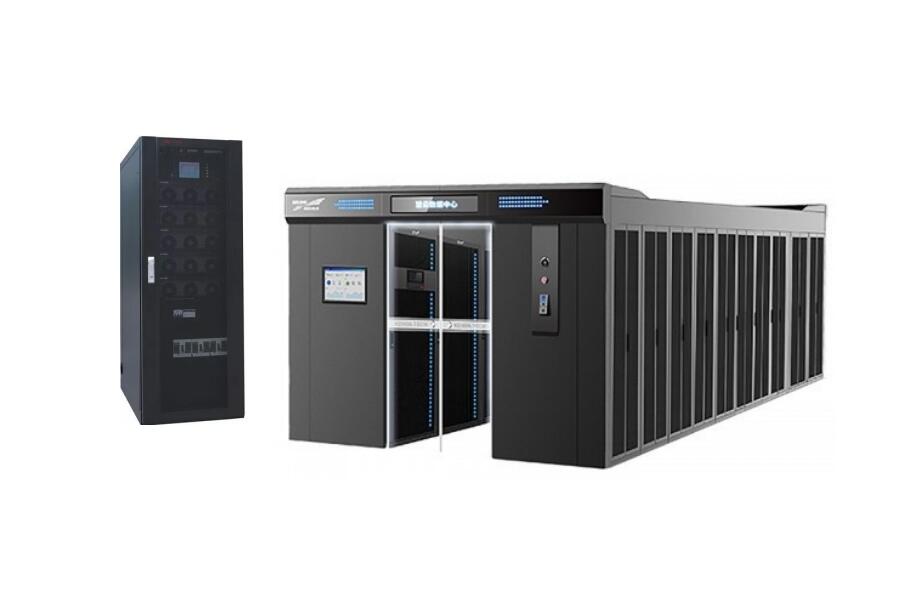

 SHUYI Modular Data Center UPS SHUYI Modular Data Center UPS
