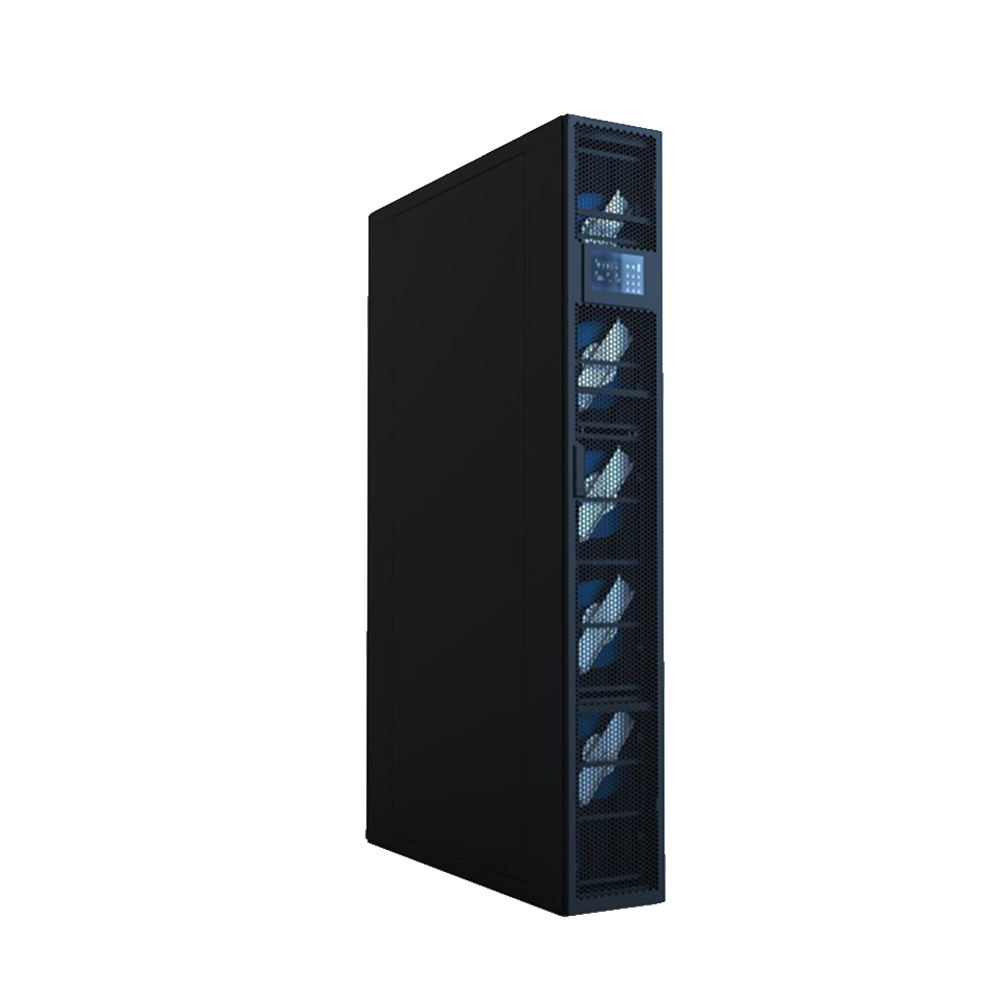

SHUYI Row In-row Precision Air Conditioning
SHUYI Row In-row Precision Air Conditioning
SHUYI Row In-row Precision Air Conditioning
SHUYI Row In-row Precision Air Conditioning
SHUYI Row In-row Precision Air Conditioning

SHUYI Row In-row Precision Air Conditioning

SHUYI Row Precision Air Conditioning is an in-row cooling solution commonly used in data centers requring higher density cooling with greater efficiency and capacity. The unit is placed beteween the servers in a row for offering cooling close to the heat load, the horizontal airflow pattern supports hot aisles and cold aisles configeration.



Direct expansion air-cooled units, water cooled unit, glycol cooled units and chilled water units can meet most of server rooms environment. Wide cooling range can solve the air conditioning solution of the data room with high heat dissipation density under different application environmental conditions.

Cooling Capacity

12-60KW

Cooling Type

Front/Side

Refrigerant

R410A/R407C

Centrigufal Fan

EC Fan

Compressor Type

Inverter Compressor

Air Volume

3200-12500㎥/h



Inquire Now
Product categories
how can we help you
You can contact us any way that is convenient for you. We are available 24/7 via email or telephone.
Contact Us
New Products



Features
  • SHUYI In-row precision air conditioning



    Efficient - save money and space


    ● Adopt high-efficiency EC fan, with soft-start function, multiple fans are evenly distributed, air flow is uniform without dead angle, and heat exchange efficiency is improved



    ●Air is directly drawn from the hot aisle, allowing the unit to take advantage of higher heat transfer efficiency due to higher Delta T.

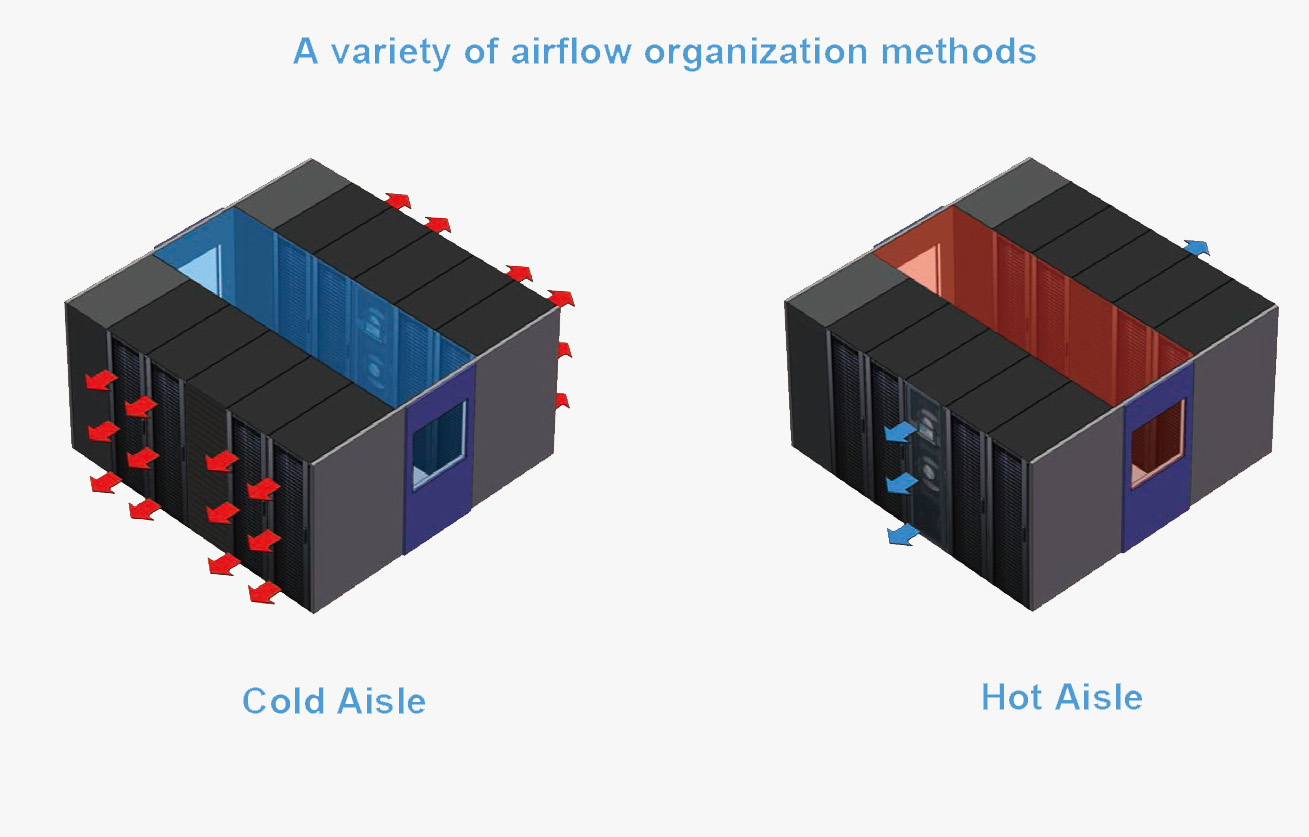

    ●Cold aisle/Hot ailse containment avoids mixing of cold and hot air



  • SHUYI In-row PAC Configuration



    High intelligence - time saving



    ● Standard RS485 communication interface to realize remote monitoring, optional SNMP and TCP/IP interface to improve the efficiency of communication interconnection and meet users' various needs for energy linkage, monitoring and inspection, etc.



    ●Intelligent detection of supply voltage, frequency and three- phase imbalance.



    ●Highest protection against downtime, equipment damage and excess wear and tear.



    ●Touched screen interface offers the full visibility.



Advantages
  • In-row Precision Air Conditioning

    Adopting variable frequency scroll compressor, excellent resistance to liquid impact and lower noise.

    Highly reliable full frequency conversion control, starting current less than rated current and lower impact of power grid.

    Adopting two stage evaporator, add water tray in the middle, effectively prevent blowing water.

    Adopting high-quality components that are strictly tested and certified.

    High strength structure design could ensure solid and reliable



Specifications



Model CRA013 CRA025 CRA040 CRA050 CRA060
Air Supply Front/Side Front/Side Front Front Front
Power Supply 380Vac/3Ph/50Hz 380Vac/3Ph/50Hz 380Vac/3Ph/50Hz 380Vac/3Ph/50Hz 380Vac/3Ph/50Hz
Technical Data
Cooling Capacity  (kW) 13.2 26.7 42.6 53.3 63. 9
Sensible Cooling (kW) 13.2 26.7 42.6 53.3 63. 9
Compressor
Refrigerant R410A R410A R410A R410A R410A
Quantity 1 1 1 1 1
Fan
Fan Type EC centrifugal fan EC centrifugal fan EC centrifugal fan EC centrifugal fan EC centrifugal fan
Quantity 4 5 2 3 3
Air Volume (m3/h) 3200 5000 8800 11000 12500
Heater
Heat Type PTC PTC PTC PTC PTC
Capacity  (kW) 2 3 6 6 6
Class 1 1 1 1 1
Humidification
Type Humidifier Humidifier Humidifier Humidifier Humidifier
Capacity (kg/h) 1 1.5 3 3 3
Air Filter G4 G4 G4 G4 G4
Connection Pipe
Humidifier inlet pipe (in) G1/2 G1/2 G1/2 G1/2 G1/2
Drain Pipe Φ (mm) 19 19 19 19 19
Gas Pip Φ(mm) 15.88 19.05 19.05 22 22
Liquid Pipe Φ (mm) 9.52 12.7 15.88 19.05 19.05

Indoor Dimension-W*D*H (mm)
Dimension 300*1200*2000
300*1400*2000		 300*1200*2000
300*1400*2000		 600*1200*2000 600*1200*2000 600*1200*2000
Weight (kg) 190 230 285 310 330
Note:
Standard working conditions: indoor return air dry bulb temperature 37°C, relative humidity 24%, outdoor dry bulb temperature 35°C ；



Applications

Data center with single rack above 3kW

High heat density computer room

Partially overheated computer room

Modular Data Center

Container Data Center

Low PUE data center

Renovation of local hot spots in the computer room

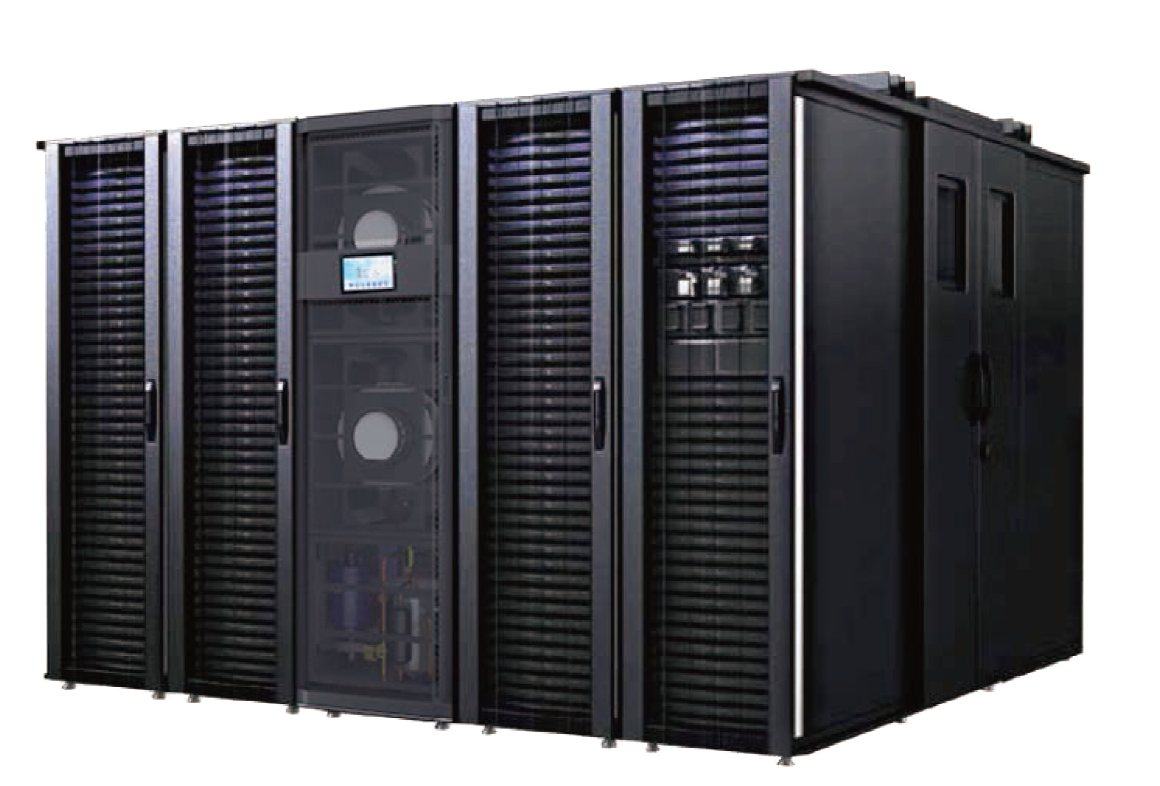

 In-row Precision Air Conditioning Application



Solutions
