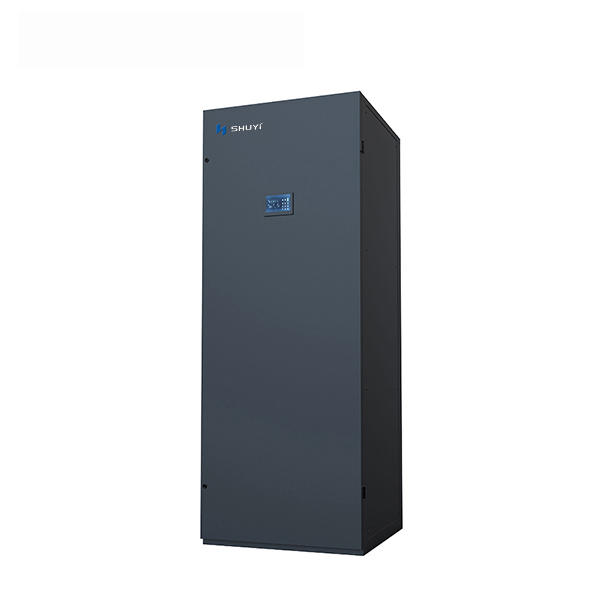

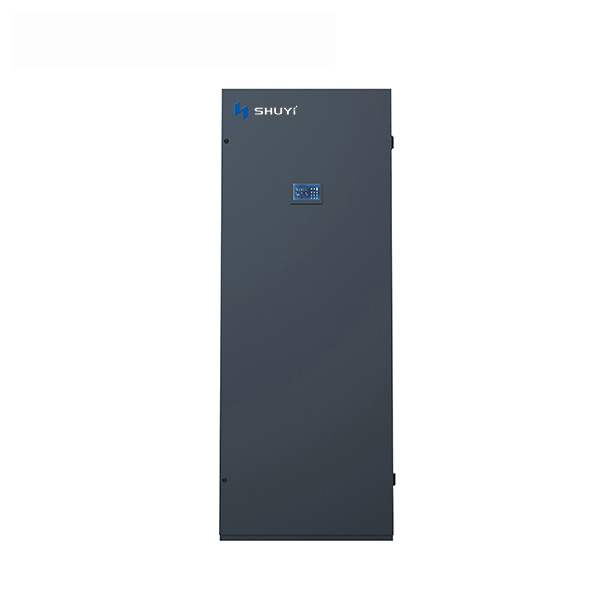

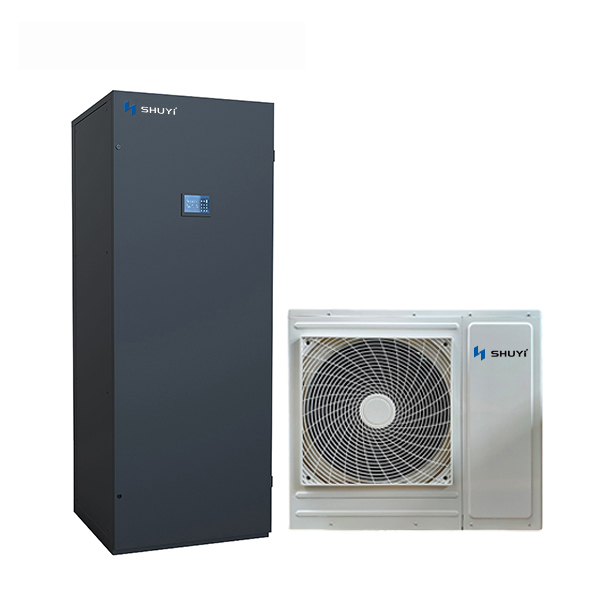

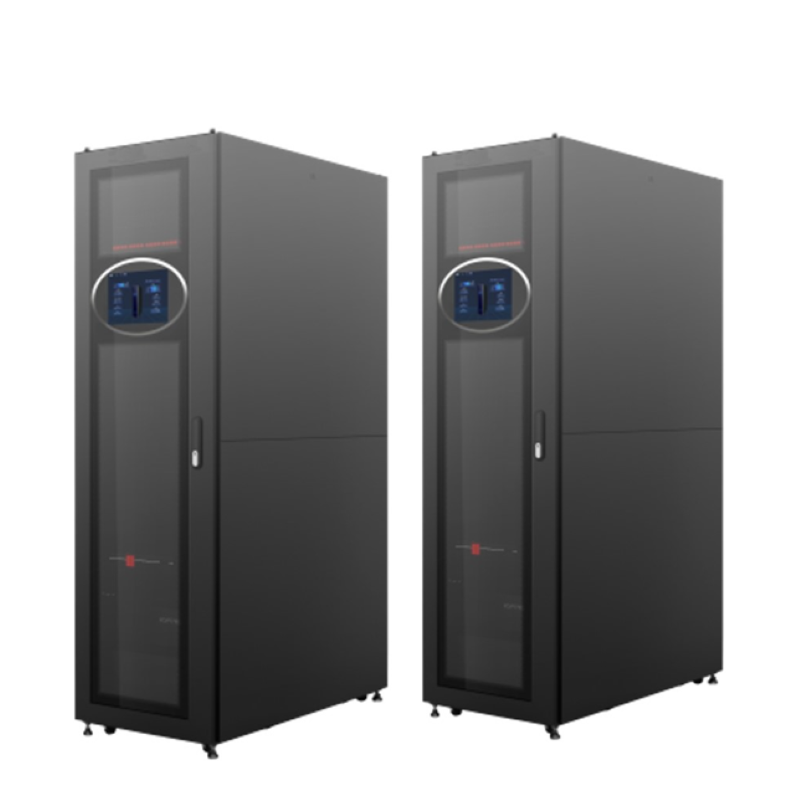

SHUYI Smart Precision Air Conditioning For Small Computer Room
SHUYI Smart Precision Air Conditioning For Small Computer Room
SHUYI Smart Precision Air Conditioning For Small Computer Room
SHUYI Smart Precision Air Conditioning For Small Computer Room

SHUYI Smart Precision Air Conditioning For Small Computer Room

The cool-smart series computer room air conditioner is designed for small and mediunn-sized computer rooms,telecom station, equipment rooms, etc. . Cool-smart has the characteristics of high air volume and smallenthalpy with high reliability,high efficiency,long working life,and energy saving.



Cooling Capacity

6-20KW

Cooling Type

Front/Side

Refrigerant

R410A

Centrigufal Fan

EC Fan

Compressor Type

Inverter Compressor

Air Volume

3000-9000㎥/h



Inquire Now
Product categories
how can we help you
You can contact us any way that is convenient for you. We are available 24/7 via email or telephone.
Contact Us
New Products

Features
  • Air Cooled Precision Air Conditioner

    HIGH ACCURACY



    ·Using a new generation of intelligent microcomputer

    ·PID control technology to accurately control ambienttemperature and humidity,to ensure temperature contolaccuracy of ±0. 1°C and humidity control accuracy ±5% incomputer room.

    ·Accurate operation of refrigeration,heating,dehumidification and humidification systems withinnovative predictive control technology.

    ·Precise control of humidifier system with a unique drysteam humidification intelligent control unit.

    ·PTC electric heater equipped with overheat protection.



  •

  • Advantage
  •
  • IT Room Cooling Unit

    HIGH EFFICIENCY



    ·Large air volume and small enthalpy design, low energyconsumption

    ·High-efficiency scroll compressor with high energyefficiency,high cooling capacity,low noise and long workinglife

    ·Large-area multi-layer evaporator, designed with higheffciency internal thread copper tube and self-cleaning heatexchange fin,which ensures the highest heat exchangeefficiency to guarantee large cooling capacity.

    ·Large outdoor condenser cooling circuit design andoutdoor speed control fan annd condensing pressureautomatic adjustment device

    ·Unique cooling and dehumidification automatic mode andthermal recovery technology (optional),reduce reheat compensation,high efficient dehumidifcation and energy saving.

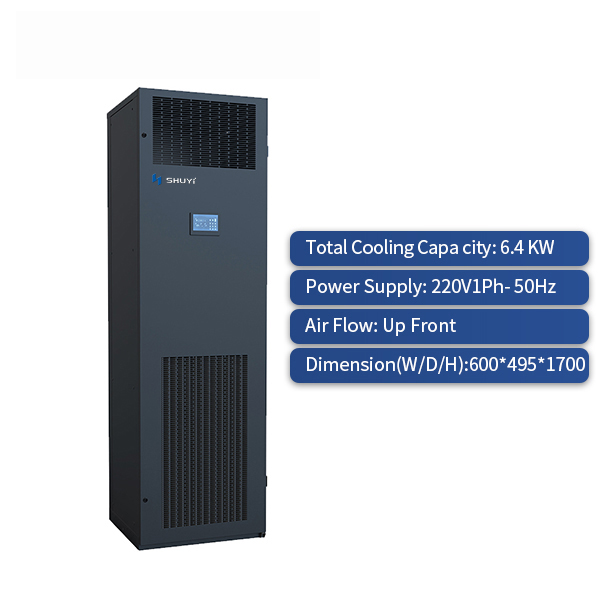

Technical Parameter



Model M06 M08 M13 M17 M20
Power   220Vac/1Ph/50Hz 380Vac/3Ph/50Hz 380Vac/3Ph/50Hz 380Vac/3Ph/50Hz 380Vac/3Ph/50Hz
Performance parameters
Total capacity  kw 6.4 7.5 12.5 17.5 20.2
Sensible capacity  kw 5.8 6.9 11.3 15.7 18.2
Compressor
Refrigerant   R410A
Compressor type   Fixed frequency scroll compressor
  Fan
Fan type   Backward inclined centrifugal fan
Air volume  m³/h 1900 2400 3800 5300 5700
Excess pressure outside  Pa Standard pressure is 20Pa, adjustable from 20-300Pa
Type   Electrode humidifier
Air filter   G4 plate filter
Indoor noise  dBA 65 65 66 67 68
Humidifier inlet pipe In G 1/2 G 1/2 G 1/2 G 1/2 G 1/2
Condensate drain pipe  φmm 19 19 19 19 19
Gas pipe φmm 12.7 12.7 15.88 15.88 19.05
Liquid pipe φmm 9.52 9.52 9.52 9.52 12.7
Power kw 2 5 2.6 5.6 4.4 7.4 5.8 9.8 6.9 10.9
FLA A 12.5 30.5 11 16 13.6 18.6 25.5 33 25.5 33
Dimension:L×D×H  mm 600×510×1900 600×580×1900 600×580×1900 750×660×1900 750×660×1900
Weight  kg 110 116 135 162 166
Condenser   CY0081 CY0121 CY0191 CY0241 CY0291
Power   220Vac/1Ph/50Hz
Installation method   Vertical Vertical/horizontal
Type   Single-phase asynchronous motor + axial flow fan Single-phase axial fan
Fan quantity PC 1 1 2 1 1
Air volume  m³/h 3000 4000 7000 8500 9000
Input power  kw 0.16 0.17 0.38 0.6 0.61
Input current  A 0.62 0.65 1.7 3.4 3.4
Speed mode   Stepless speed regulation
Unit noise  dBA 53 55 58 65 65
Dimension:L×D×H  mm 835×310×710 880×360×800 930×390×1270  1115X 1065X520  1115X 1065X545
Weight  kg 45 48 65 94 100

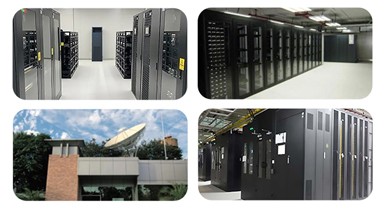

Applications

  • IT Equipment Room
  • Small Data Center
  • Industrial Clean Room
  • Constant Temperature And Humidity Process Workshop
  • Laboratory
  • Electric Power Equipment Room
  • Railway Subway Machine Room
  • Base Station And Small Telecom Switch Room
  • Medium&Small Telecom Switch Room



 In-row Precision Air Conditioning Application



Solutions





Hot Tags : Air Cooled Precision Air Conditioner IT Room Cooling Unit Precision Air Conditioner PACU Precision Cooling System Cool Smart Precision Air Conditioning 6-20KW Precision Air Condition
leave a message
Please tell us about your industry background or specific application, as well as the products and services you’re interested in, so that we can provide you with a more tailored solution and quote.
Related Products

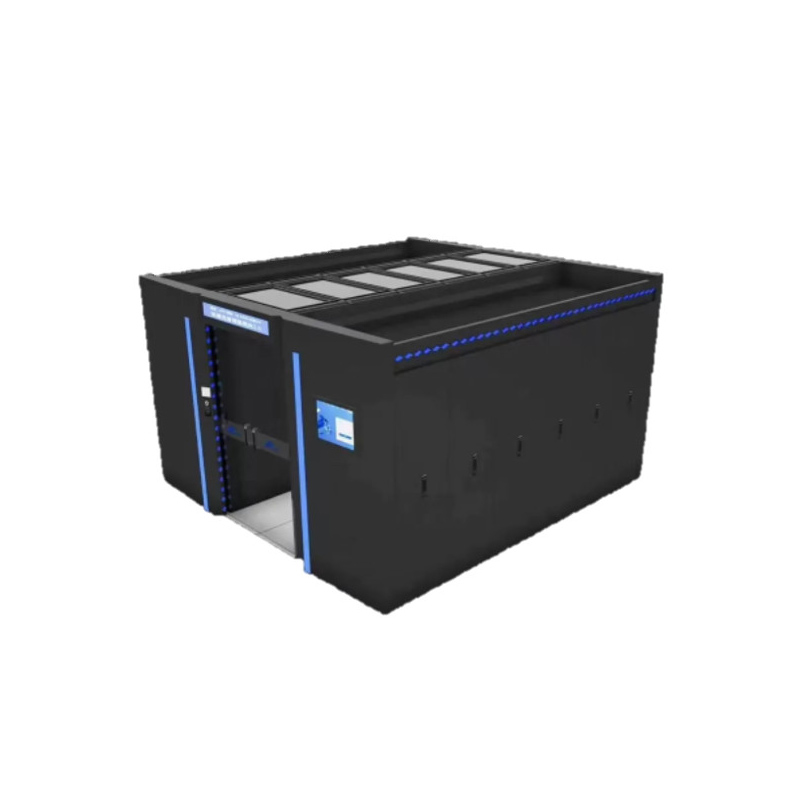

  • Hot &Cold Aisle Containment
    Hot& Cold Aisle Containment With Low PUE

    The cool-smart series computer room air conditioner is designed for small and mediunn-sized computer rooms,telecom station, equipment rooms, etc. . Cool-smart has the characteristics of high air volume and smallenthalpy with high reliability,high efficiency,long working life,and energy saving. Cooling Capacity 6-20KW Cooling Type Front/Side Refrigerant R410A Centrigufal Fan EC Fan Compressor Type Inverter Compressor Air Volume 3000-9000㎥/h

    Read More
  • Cabinet Data Center
    Cabinet Data Center Applied In Small Business

    The cool-smart series computer room air conditioner is designed for small and mediunn-sized computer rooms,telecom station, equipment rooms, etc. . Cool-smart has the characteristics of high air volume and smallenthalpy with high reliability,high efficiency,long working life,and energy saving. Cooling Capacity 6-20KW Cooling Type Front/Side Refrigerant R410A Centrigufal Fan EC Fan Compressor Type Inverter Compressor Air Volume 3000-9000㎥/h

    Read More

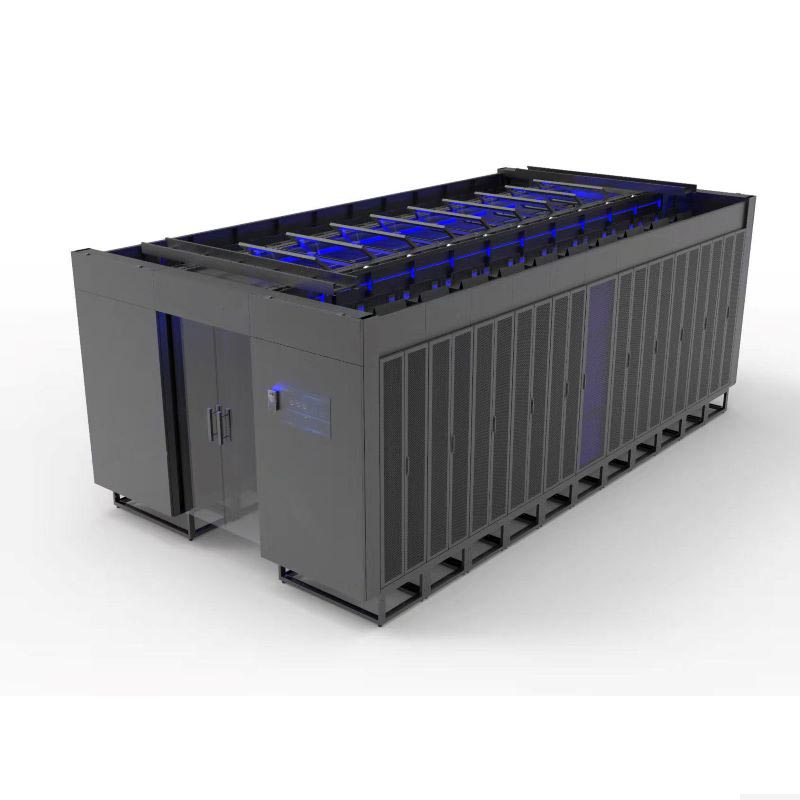

  • Prefabricated Modular Data Center
    Server Room Modular Data Center Solutions

    The cool-smart series computer room air conditioner is designed for small and mediunn-sized computer rooms,telecom station, equipment rooms, etc. . Cool-smart has the characteristics of high air volume and smallenthalpy with high reliability,high efficiency,long working life,and energy saving. Cooling Capacity 6-20KW Cooling Type Front/Side Refrigerant R410A Centrigufal Fan EC Fan Compressor Type Inverter Compressor Air Volume 3000-9000㎥/h

    Read More

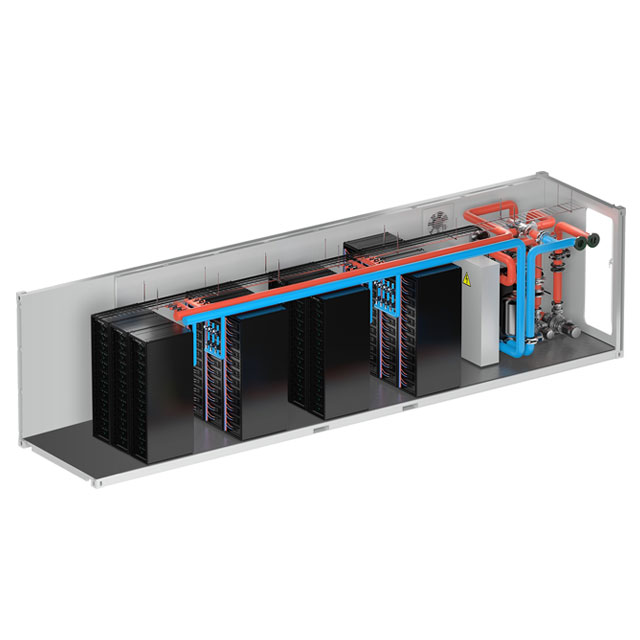

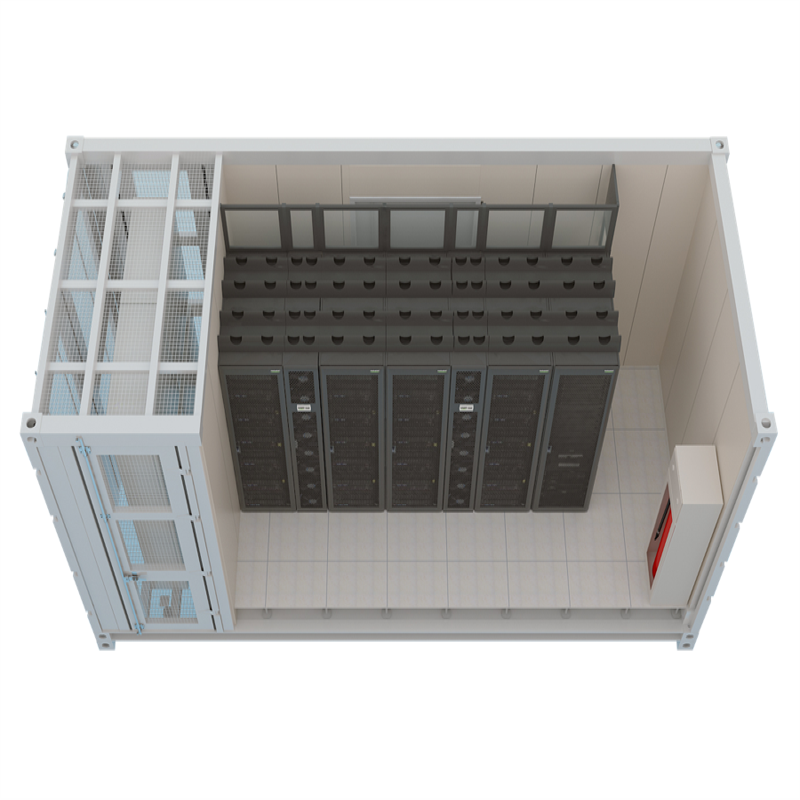

  • Prefabricated Container Data Center
    Prefabricated Container Data Center Easy Installation And Moving

    The cool-smart series computer room air conditioner is designed for small and mediunn-sized computer rooms,telecom station, equipment rooms, etc. . Cool-smart has the characteristics of high air volume and smallenthalpy with high reliability,high efficiency,long working life,and energy saving. Cooling Capacity 6-20KW Cooling Type Front/Side Refrigerant R410A Centrigufal Fan EC Fan Compressor Type Inverter Compressor Air Volume 3000-9000㎥/h

    Read More
  • Prefabricated container data center
    Efficient Bitcoin Mining Data Center

    The cool-smart series computer room air conditioner is designed for small and mediunn-sized computer rooms,telecom station, equipment rooms, etc. . Cool-smart has the characteristics of high air volume and smallenthalpy with high reliability,high efficiency,long working life,and energy saving. Cooling Capacity 6-20KW Cooling Type Front/Side Refrigerant R410A Centrigufal Fan EC Fan Compressor Type Inverter Compressor Air Volume 3000-9000㎥/h

    Read More
  • 102KW Data Center PAC
    Data Center Precision Air Conditioning Units

    The cool-smart series computer room air conditioner is designed for small and mediunn-sized computer rooms,telecom station, equipment rooms, etc. . Cool-smart has the characteristics of high air volume and smallenthalpy with high reliability,high efficiency,long working life,and energy saving. Cooling Capacity 6-20KW Cooling Type Front/Side Refrigerant R410A Centrigufal Fan EC Fan Compressor Type Inverter Compressor Air Volume 3000-9000㎥/h

    Read More

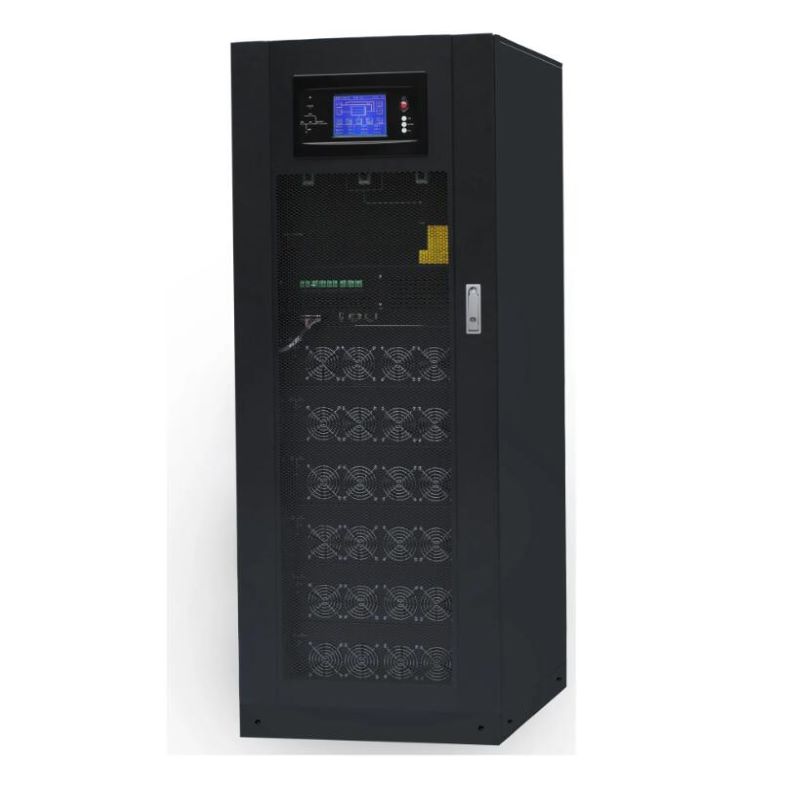

  • Modular UPS
    CNM Modular Uninterrupted Power Supply (UPS)

    The cool-smart series computer room air conditioner is designed for small and mediunn-sized computer rooms,telecom station, equipment rooms, etc. . Cool-smart has the characteristics of high air volume and smallenthalpy with high reliability,high efficiency,long working life,and energy saving. Cooling Capacity 6-20KW Cooling Type Front/Side Refrigerant R410A Centrigufal Fan EC Fan Compressor Type Inverter Compressor Air Volume 3000-9000㎥/h

    Read More

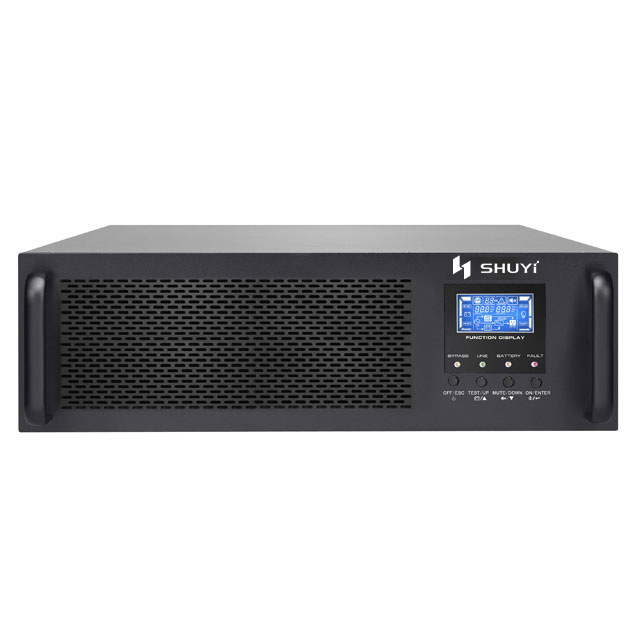

  • Rack Type UPS 1-10KVA
