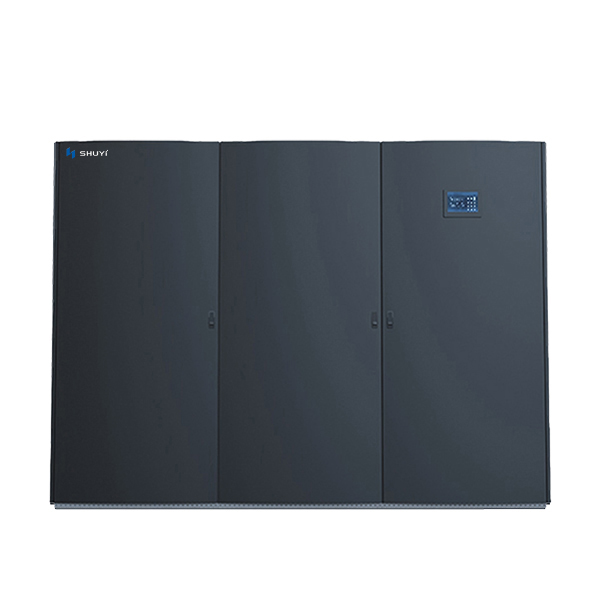

High Precision Close Control Unit Air Conditioning Cooling Type
High Precision Close Control Unit Air Conditioning Cooling Type
High Precision Close Control Unit Air Conditioning Cooling Type
High Precision Close Control Unit Air Conditioning Cooling Type

High Precision Close Control Unit Air Conditioning Cooling Type

SHUYI CCU air conditioner series high-precision Lab air conditioner is developed to meet the high-precision temperature and humidity requirements in special environments. The temperature control accuracy reaches ±0.2°C, and the humidity control accuracy reaches ±2%. It can be widely used in precision instrument laboratories,textile workshops, paper workshops, tobacco companies, archives,etc.



Cooling Capacity  Power Supply
24℃/50%RH 380V 3Ph-50HZ
Refrigerant Fan Section
R410A Centrifugal EC fan



Inquire Now
Product categories
how can we help you
You can contact us any way that is convenient for you. We are available 24/7 via email or telephone.
Contact Us
New Products

Features

  • ●High control precision and wide control range

    ●Cabinet process

    Sturdy metal shell, all shells are made of steel plates of 1.2mm or more. Good sealing, lined with heat-insulating and sound-absorbing materials, which can prevent airflow leakage and reduce noise The unit has a hinged front door, which is easy to open and can provide normal maintenance service without providing special tools.

    ●Scroll compressor

     Advanced high-efficiency compressor system, using Hitachi or Copeland and other world-renowned compressors; low noise, high efficiency and energy saving, high reliability and long service life; the whole series adopts advanced compressors with high efficiency, few moving parts, prolonging the life of the unit and no liquid strike phenomenon. The compressor is equipped with a phase loss protection device, which can automatically stop the compressor work and protect the compressor motor in case of power loss or compressor overload.

  •

    ● High-efficiency aluminum heaters can be used

     The most economical choice of air conditioner heater in terms of cost is metal tube resistance type heater, followed by steel fin type heater, and the most expensive is ceramic type and alloy aluminum heater. However, due to structural problems, the efficiency of the alloy aluminum heater is the best due to its larger size and air contact area. Therefore, when choosing other forms of heaters in general, a larger heating capacity must be selected to compensate for the defects in efficiency.

    ● Equipped with a medium-effect over-rate heater

     The middle-effect EU4/5, first-class fireproof filter pistil, metal frame structure, can be extracted from the front of the unit without worrying about dust spreading into the room, and can be cleaned repeatedly and used for many times. At the same time, according to the actual needs of users, we can provide higher efficiency filters, which can reach EU8.

  • Advantages



  • 1, High reliability, high energy saving rate, high adaptability, low cost for whole life

    2, 100% full frontal maintenance, save space in the machine room

    3, Copeland high-efficiency scroll compressor, suitable for environmental protection refrigerant

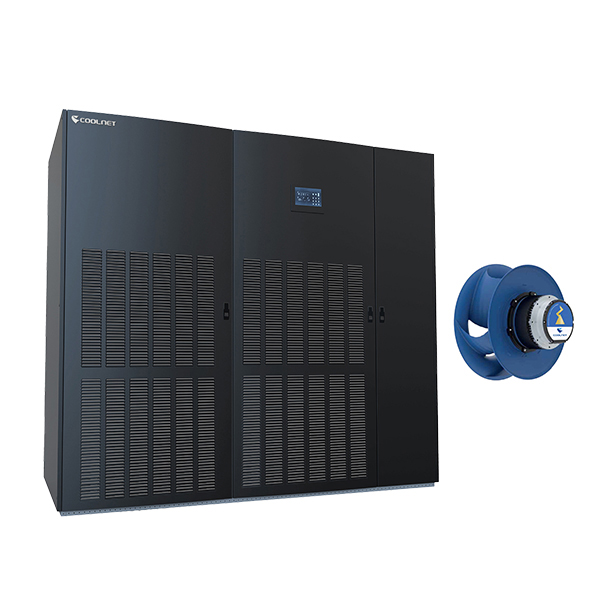

    4, Optional high-efficiency EC fan, fan system than conventional air conditioning unit energy saving more than 30%

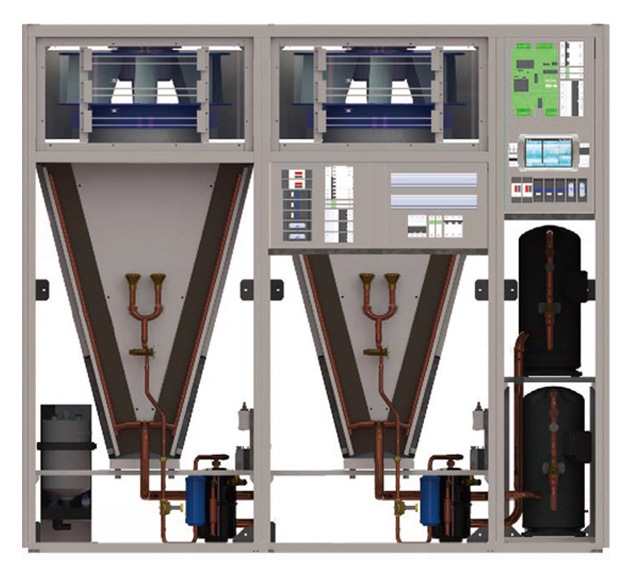

    5, Large area V-type evaporator, high air volume, high sensible heat ratio

    6, Large humidifying capacity, adapt to poor water quality, low maintenance

    7, Full Chinese true color large touch screen

    8, Powerful intelligent control system, group control of multiple units, easy to group network

    9, High efficiency frequency control owl type outdoor fan

    10, Indirect natural cooling double cycle, integrated new wind wet curtain



Technical Parameters

Model: CYA S23D/U S26D/U S28D/U S31D/U S35D/U S40D/U S45D/U S50/U
Power Supply 380V 3Ph-50HZ
Air Discharge Upflow/Downflow
Cooling Capacity :24℃/50%RH
Total Capacity KW 23.5 26.8 28.3 31.5 35.5 40.2 45.6 50.5
Sensible KW 21.6 24.2 26.1 28.9 33.2 37.6 42.2 45.7
FLA A 36.1 36.1 42.4 42.4 44 51 52.3 59.1
AEER w/w 3.6 3.6 3.7 3.7 3.7 3.7 3.6 3.6
Air Flow m3/h 7650 7800 8800 9200 10500 11500 12800 13500
Compressor  Hermetic scroll
Refrigerant R410A
Compressor quantity PC 1 1 1 1 1 1 1 1
Fan Section  Centrifugal EC fan
Fan quantity PC 1 1 1 1 1 1 1 1
Excess pressure outside  Pa Standard pressure is 20Pa, adjustable from 20-300Pa
Rated Power KW 1.1 1.1 1.8 1.9 2.1 2.2 2.7 3.1
Rated Current A 1.8 1.9 2.9 3.1 3.4 3.2 4.2 4.9
Fincoil evaporator
Type of fins   Hydrophilic
Fin pitch mm 1.8
Air filter Standard EN799
Level ≥G4
Dust interception rate >95%
Fire resistance level 1
Reheat Section
Capacity KW 6 6 6 6 6 9 9 9
 Current A 10 10 10 10 10 14 14 14
Material PTC
Humidifier Section           Electrode type
Capacity Kg/h 5 5 5 5 5 8 8 8
Rated Current A 6 6 6 6 6 10 10 10
Physical
Dimension:W×D×H  mm 890×983×1975 1315×983×1975
Weight Kg 338 345 358 366 368 453 468 488
Connection Pipe Size
Liquid pipe mm 22 22 22 22 28 28 28 28
Gas Pipe mm 28 28 28 28 35 35 35 35
Inlet Pipe of  Humidifier(Female) In G1/2'' G1/2'' G1/2'' G1/2'' G1/2'' G1/2'' G1/2'' G1/2''
Drain Pipe-DN mm 25 25 25 25 25 25 25 25
Breakers Cables
Recommended Breaker
 (Indoor Unit)		 A 50 50 50 50 63 80 80 80
Cableds (Indoor Unit) mm2 4*10+1*6 4*10+1*6 4*10+1*6 4*10+1*6 4*10+1*6 4*10+1*6 4*16+1*10 4*16+1*10
Condenser  (CY)   0451 0451 0522 0522 0582 0622 0742 0832
Note:
 (1)Air-return temperature 24℃，relative humidity 50%RH; outdoor temperature 40°C.
(2)Standard air Discharge: Upflow, Down displacement, others contact SHUYI.
    •
    •

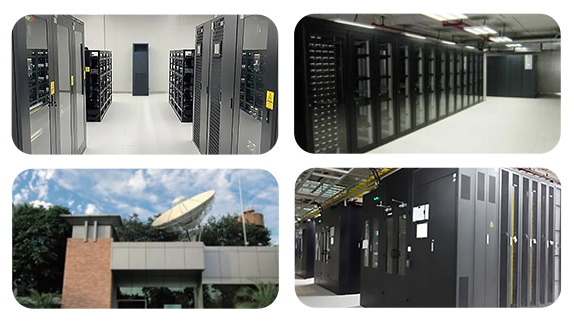

    • Application

IT Equipment Room

Small Data Center

Industrial Clean Room

Constant Temperature And Humidity Process Workshop

Laboratory

Electric Power Equipment Room

Railway Subway Machine Room
    •
    •
      •
      •
    •
    •
    • Solutions






  •
