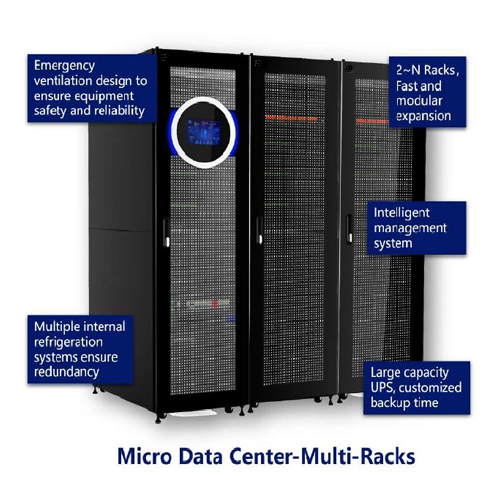

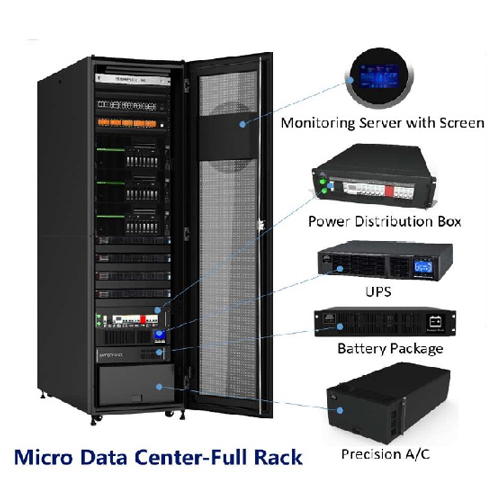

SHUYI Rack Data Centers refer to an integrated data center solution for small business or server rooms, including uninterrupted power supply, smart power distribution unit, cooling system, monitor system and so on. It can be used as a micro data center which has the advantages of low cost and high efficiency.



Power

380V/50Hz

Operating Voltage

380/400 VAC,230 VAC,220V





Cooling

In-row Precision Air Conditioning

UPS Power Supply

Modular UPS with Battery bags





Certification

CE,ISO,CCC

Monitoring System

Dynamic Intelligent Data Center Monitoring System
Inquire Now
Product categories
how can we help you
You can contact us any way that is convenient for you. We are available 24/7 via email or telephone.
Contact Us
New Products

Features

  • Cooling System

    1. The rack mounted precision air conditioners have the range of 3.5-10.5kw coolong capacity with inverter compressor and EC fan, which can reduce PUE value.
    2. General N+X redundant for PAC can be group controlled in order to reduce operation and maintenance work.





    Uninterrupted Poweer System

    1. Including 3-30KVA capcity of UPS with the backup power from 15 minutes to 2 hours.
    2. Industrial-grade devices, built-in C-level lightning protection
     3. Comprehensive monitoring, real-time power display

  •



Advantage
  •

  • Simpler
    Integrate the infrastructure through the idea of     ​​productization and modularization. You only need to select the appropriate one according to the space capacity requirements of the IT equipment
    The product specifications are sufficient, and there is no need to calculate and design the subsystems, which greatly simplifies the design process.



    More time-saving
    The product-oriented design allows the IC series cabinet-type smart data center to be installed and delivered within one day on site, compared to traditional construction models
    More than 2 times faster.



    Safer
    Deep integration of integrated products and factory pre-verification testing are more standardized, safer and more reliable than on-site construction and construction;
    Fully sealed design to prevent the harm of external air dust and corrosive gas to IT equipment;
     The dynamic environment monitoring system monitors the infrastructure in an all-round way, alerts abnormal conditions in time, and is safe and secure.







    • Lower cost
      The smallest area is only 0.7      ㎡, closed design, strong environmental adaptability, no need for decoration, flooring and other supporting projects, effectively reducing CAPEX, fully enclosed refrigeration improves the energy efficiency of the whole machine, reduces OPEX, and significantly reduces the total cost of ownership (TCO).



      Better management
      One-stop after-sales service can handle all kinds of equipment failures in time, saving time and worry; the standard dynamic loop monitoring system can be locally and remotely monitored and managed, and it can be connected to the upper management platform for unified supervision and diversified selection support.



  •



Specifications

Equipment System

Item

Parameter

System

Dimension

1200mm enclosed cold/hot aisle dual-row cabinets

1200mm enclosed cold/hot aisle Single-row cabinets

Rack Quantity

Dual Row Racks:≤48，Single Row Racks:≤24

Rack

Dimensions

600mm(W)*1200mm(D)*2000mm(H), can be customerized，42U

Protection Class

IP20

Enclosed Aisle

Skylight

300mm / 600mm wide turning skylight,Flat roof skylight,Fixed skylight

Power Supply and Distribution

Dimension

600mm(W)*1200mm(D)*2000mm(H)

UPS Power Supply

380VAC/400VAC/415VAC(3Phase 5Wire),50/60Hz,PF=0.99

Battery

40AH～240AH/12V Valve Regulated Lead Acid Battery

Cooling

Indoor Unit Size

300mm(W)*1200mm(D)*2000mm(H)，600mm(W)*1200mm(D)*2000mm(H)

Cooling Capacity

Cooling:20～40KW，Chilled water :20～70KW，Chilled water :20～70KW

Power Supply

3Phase 380VAC,50Hz

Air Supply

Front Supply

Type

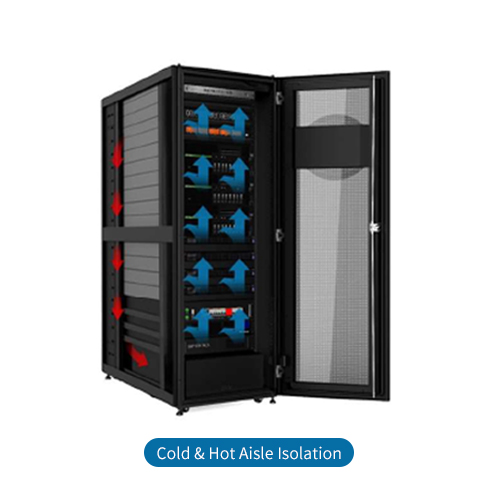

Enclosed Hot/Cold Aisle

Protection

IP20

Monitoring System

Monitoring

Temperature and humidity, smoke detection, smart access control, camera, water leakage alarm

Equipment monitoring

Power supply, battery, power distribution, air conditioning



Applications

  • Business outlets (telecommunications, finance, energy, radio and television, retail...)
  • Small companies
  • Branches and networks of large enterprises, governments, education, and medical care

  • Edge Data Center

Solution
