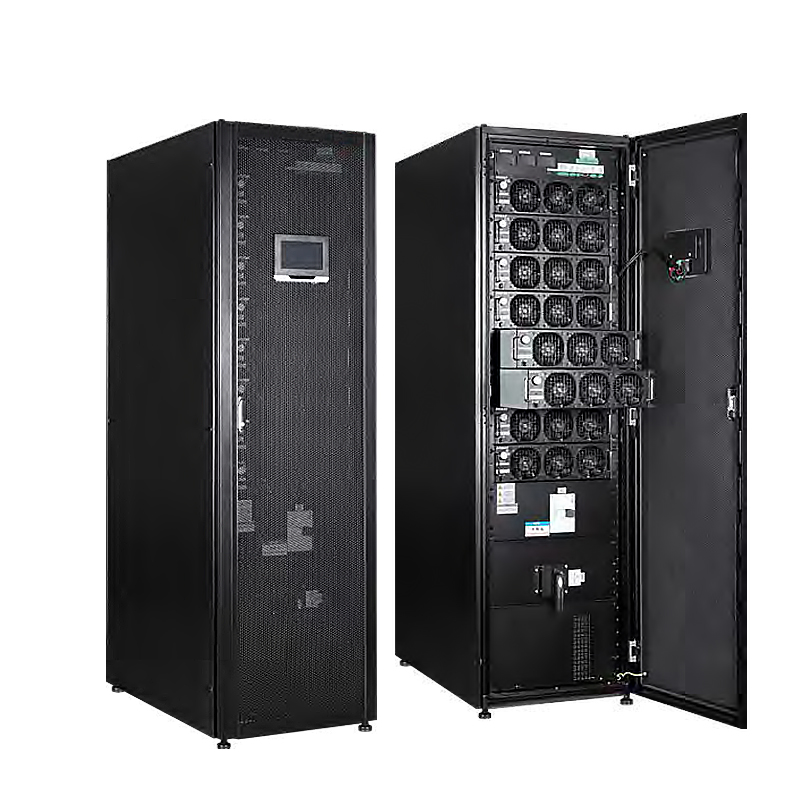

Large Capacity Low Power Modular UPS
Large Capacity Low Power Modular UPS
Large Capacity Low Power Modular UPS
Large Capacity Low Power Modular UPS

Large Capacity Low Power Modular UPS

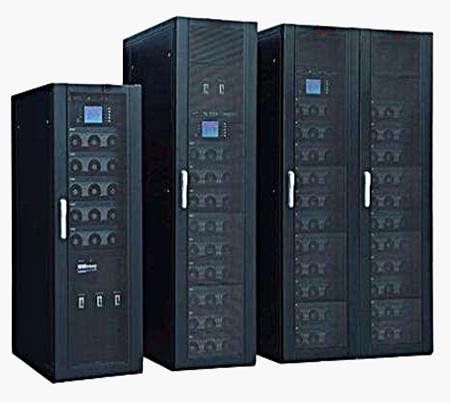

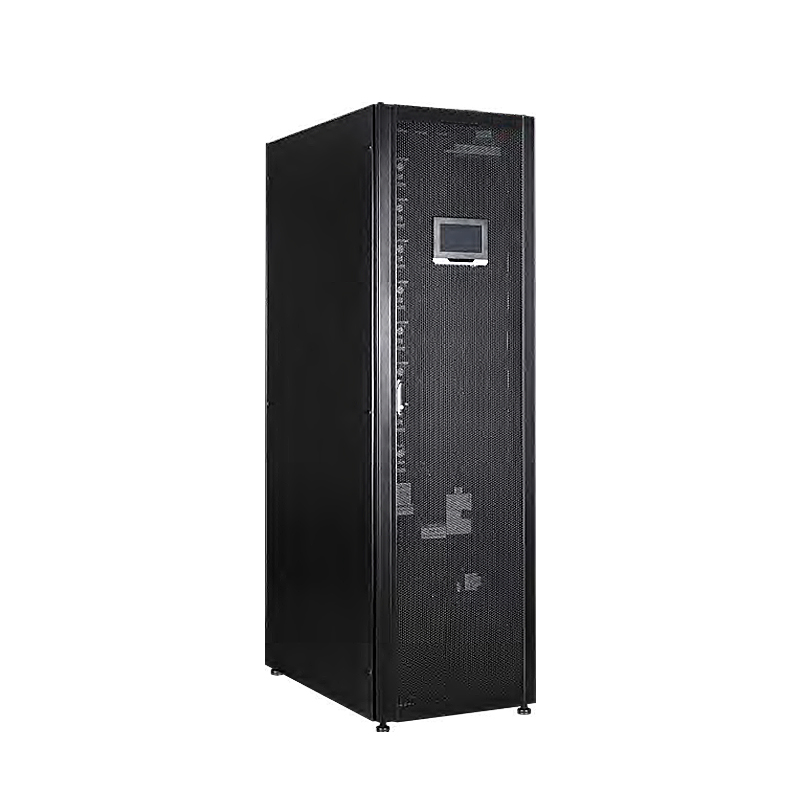

SHUYI CN-UM Modular UPS adopts a fully modular design with easy-plug function. The entire UPS power supply system consists of system cabinet, UPS module, communication module and display module. Optionally equipped with power panels, various smart cards, lightning protection modules, etc. to meet customer customization needs. Each UPS module is a fully functional UPS. Through advanced wireless parallel control technology and intelligent communication protocol, the UPS module, communication module and display module can be replaced online without affecting the normal operation of other parts. The modules can be added to the system without any calibration action, which is easy to expand and maintain online.



System Capacity

Connection

100KVA-500KVA

Three-phase five-wire system





Rated Voltage

Rated Frequency

380/400/415VAC

50/60HZ


Input power factor

 Battery Cells

>0.99

40 batteries(32-44 optional)
Inquire Now
Product categories
how can we help you
You can contact us any way that is convenient for you. We are available 24/7 via email or telephone.
Contact Us
New Products
Features
  • Modular UPS Configuration

    Easy to use

    >>Output voltage can be set via touch screen: 220/ 230/ 240VAC, 220VAC (default)

    >>The number of battery cells can be adjusted, which can be configured through the touch screen, and supports any adjustment of 36-42 cells

    >>Password protection for shutdown and configuration can be set to prevent mis operation

    >>Store history events, can record about 4096 status messages

    Concise

    >>System adopts the integrated design idea, unique design, simple operation. Using full digital without master-slave and paralleling control technology, easy expansion

    >>Inner part modular, easy to install, easy to maintain

    >>Many event record, easy to identify

    >>Integration, easy to deliver

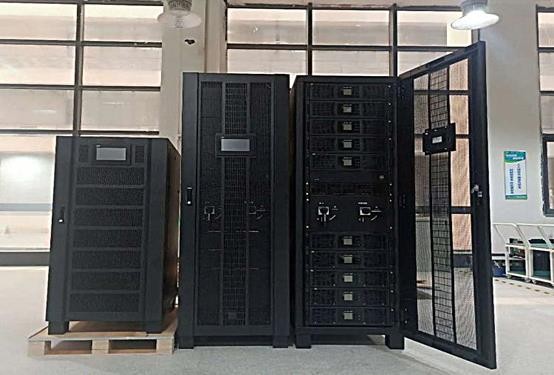

  • SHUYI Modular UPS

    Economy

    >>The product adopts on-line double transformation technology, low heat release, high efficiency of the system, to save more energy and reduce investment for customer.

    >>High efficiency, ECO mode efficiency can reach up to 98%;

    >>Start-up delay technology, reduce the Instantly shocks on power distribution system, then to reduce customer investment

    >>Low input current harmonics, improve the utilization rate of power supply

    Reliability

    >>Redundancy design of key part, improve the reliability of system, ensure the reliable power supply system

    >>Unique system design, multiple protection system design to ensure high reliability of the system in harsh environments

    >>Output isolation design, reduce the effect on the load and ensure the safety of the loading equipment

  •
Advantages
  • Modular UPS Application

    >>Using advanced DSP control technology, the efficiency of rectification and inverter is as high as 96%, and the efficiency of AC direct supply mode is as high as 99%;

    >>Adopt AC direct supply energy-saving mode to greatly reduce power consumption;

    >>Adopt ABM™ intelligent battery management technology to extend battery life;

    >>Support battery cabinets, upper air outlet accessories, parallel management cabinets, upper incoming cable cabinets, synchronization controllers and other optional accessories to improve the flexibility and configurability of the system.

Specifications

Model

System

CM-120/20

CM-150/25

CM-180/30

Power module

HM20

HM25

HM30

Capacity

System power

120KVA

150KVA

 180KVA

Main line

Connection

three-phase five-wire system

Rated voltage

380/400/415VAC

Voltage range

-40% to +30%

Rated frequency

50/60HZ

Frequency range

40-70HZ

Current harmonic
wave distortion

THDI＜3%

Input power factor

＞0.99

Bypass

Rated voltage

380/400/415VAC

Voltage range

-20% to +15%(other value out of this range can be set)

Rated frequency

50/60HZ

Frequency range

±1HZ, ±3HZ,±5HZ

Battery

Battery cells

40 batteries(32-44 optional)

Output

Connection method

three-phase five-wire system

Rated voltage

380/400/415VAC

Rated frequency

50/60HZ

Voltage accuracy

±1%

Frequency accuracy

50/60HZ±0.01HZ

Voltage harmonic
wave distortion

＜1%(Linear load); ＜3%(Non-linear load)

Peak value

≥3:1

Power factor

1.0

Overload capability

110%, switch to bypass after 3 hours;     125%, switch to bypass after 30 minutes;
150%, switch to bypass after 5 minutes

Machine system

Wire connection method

support up and down connection

Panel display

LCD+LED, super big colorful touch screen

Communication interface

RS232,RS485,SNMP,EPO, generator interface

Operation
environment

Running temp.:-10℃ to 40℃;  Storage temp.:-25℃ to 70℃;  Relative humidity:0-95% with no condensation

Noise(dB)

＜55dB

＜65dB

Weight(KG)

Cabinet

150

 180

Size(W*D*H) mm

Cabinet

600*900*1600

600*1100*1600

Power module

440*590*134

460*790*134



Applications

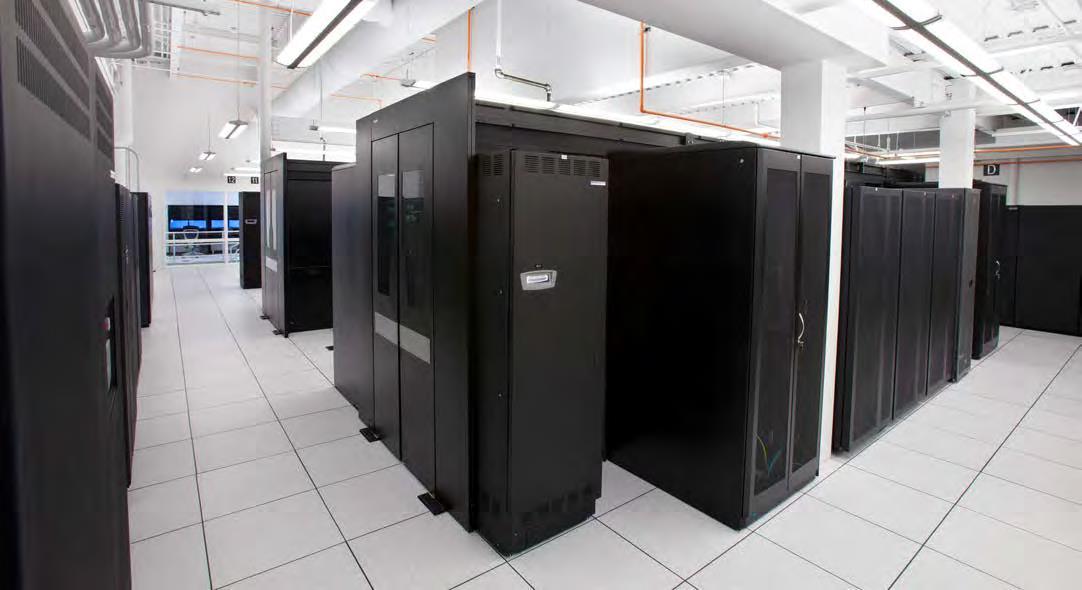

Data center

Public security system

Power dispatch center

Financial data center

Education system

Radio and television system

Industrial control system

Medical center

Traffic control hub

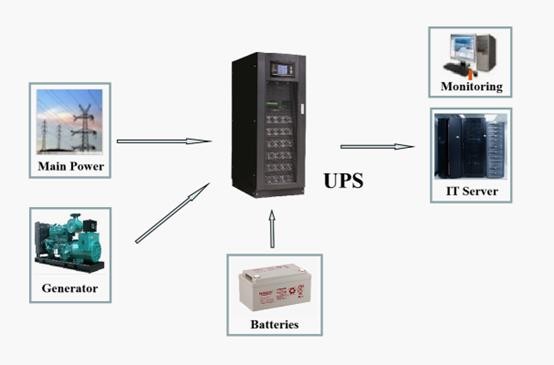

 SHUYI UPS Application



Solutions
